TLF14CB1030R7K1

Description：CMC 700MA 2LN TH
Series：TLF14
Mfr：Taiyo Yuden
Package：Bulk

SKU:de274f011299 Category: Common Mode Chokes Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 700MA 2LN TH
Series：TLF14
Mfr：Taiyo Yuden
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：700mA
DC Resistance (DCR) (Max)：850mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.866" L x 0.669" W (22.00mm x 17.00mm)
Height (Max)：0.906" (23.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Download product information

TLF14CB1030R7K1

Overview

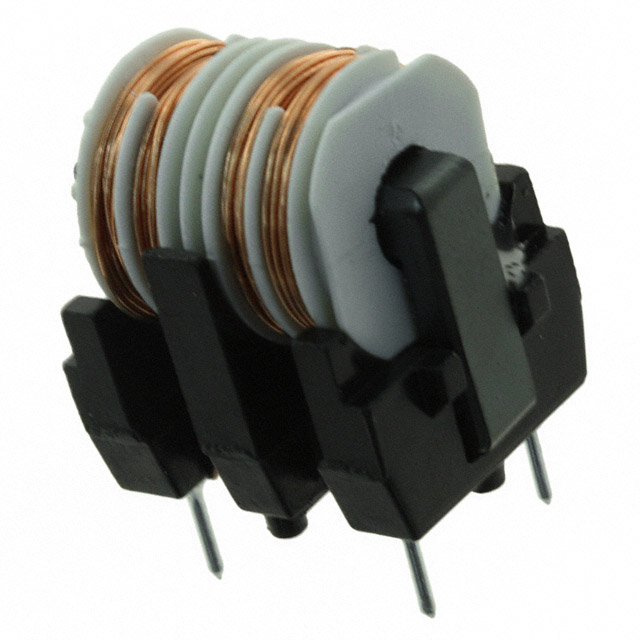

The TLF14CB1030R7K1 is a leaded common mode choke coil designed for AC line applications. It features two lines with a rated current of 700mA and a DC resistance of 850mOhms per line. The component utilizes a through-hole mounting style suitable for standard PCB assembly processes.

Feature Summary

Designed specifically for AC line filtering applications
Two-line configuration for differential noise suppression
Through-hole construction for robust mechanical attachment

Applications

AC power line filtering
Electromagnetic interference suppression in AC circuits

Procurement Notes

Verify product status as the component is listed as obsolete or discontinued by multiple distributors. Confirm availability with Taiyo Yuden directly, as stock levels are not guaranteed. Ensure end-of-life notifications are reviewed before finalizing design-in decisions to avoid supply chain disruptions.

Selection Notes

Select this component only if legacy compatibility or specific through-hole requirements are necessary for AC line filtering. Evaluate alternative modern common mode chokes from the manufacturer's current portfolio for new designs to ensure long-term supply stability and updated performance characteristics.

Part Context

This part belongs to Taiyo Yuden's range of leaded common mode choke coils. These components are engineered to suppress common mode noise on AC power lines, protecting downstream electronics from electromagnetic interference generated by external sources or internal switching activities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Taiyo Yuden technical support for current series replacements.
