TLF14CB2221R2K1

Overview

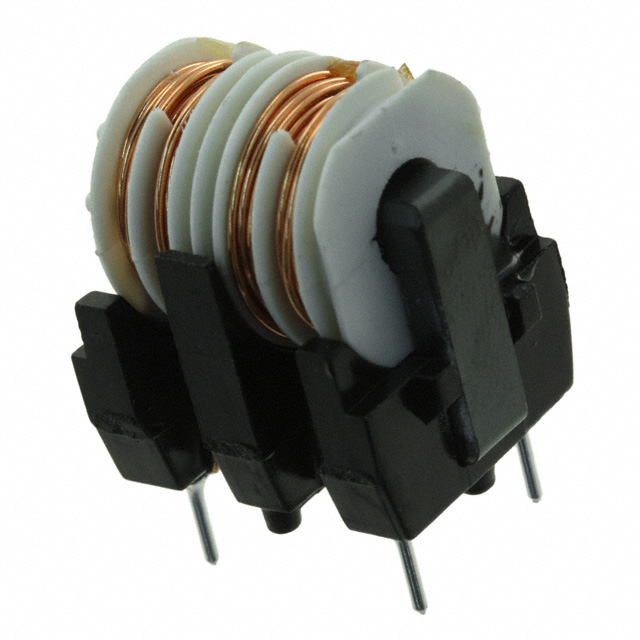

The TLF14CB2221R2K1 is a through-hole common mode choke coil manufactured by Taiyo Yuden, designed for AC line applications. It features a minimum common mode inductance of 2200 µH at 1 kHz and a maximum DC resistance of 0.18 Ω. The component supports a rated current of 1.2 A and operates within a temperature range of -25 °C to 105 °C. Its physical dimensions are 17.0 mm in width, 22.0 mm in length, and 23.0 mm in height. The device is RoHS compliant and utilizes a leaded package configuration.

Feature Summary

• Provides effective electromagnetic interference suppression for single-phase AC lines
• Engineered with high insulation voltage capability for safety isolation
• Constructed for reliable performance across standard industrial operating temperatures

Applications

• Single-phase EMI filtering for AC power inputs
• Noise suppression in household appliance power circuits
• Industrial equipment AC line protection

Procurement Notes

Verify the specific suffix K1 against official Taiyo Yuden documentation to confirm packaging and compliance details. Confirm availability status as distribution channels may list discontinued or obsolete inventory. Ensure the procurement source provides valid traceability data matching the manufacturer's original specifications before finalizing orders.

Selection Notes

Select this component when designing single-phase AC filters requiring 2200 µH inductance and 1.2 A current handling. Evaluate thermal management requirements given the 105 °C maximum operating limit. Compare physical footprint constraints against the 17x22 mm case size to ensure compatibility with the target PCB or chassis mounting layout.

Part Context

This part belongs to the TLF series of leaded common mode chokes intended for AC line noise reduction. It serves as a passive filtering solution within power supply stages. The series emphasizes robust construction for mains frequency applications, distinguishing it from surface-mount variants used in low-voltage digital circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
