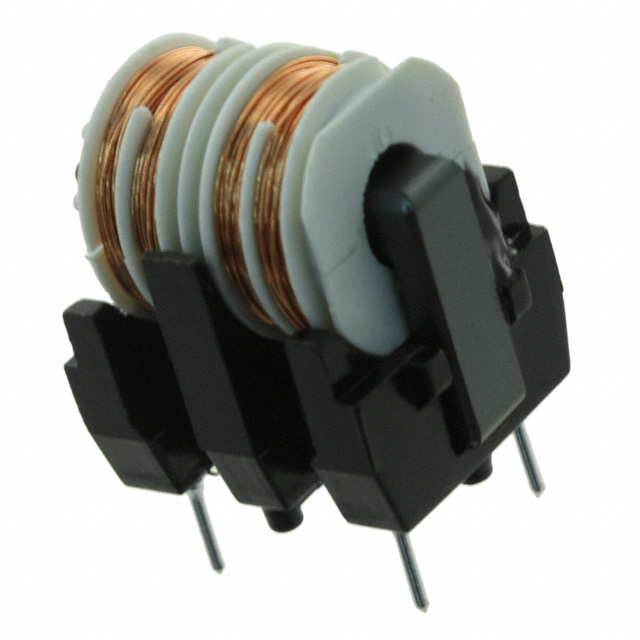

TLF14CB2730R4K1

Description：CMC 400MA 2LN TH
Series：TLF14
Mfr：Taiyo Yuden
Package：Bulk

SKU:9ef072e20760 Category: Common Mode Chokes Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 400MA 2LN TH
Series：TLF14
Mfr：Taiyo Yuden
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：400mA
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.866" L x 0.669" W (22.00mm x 17.00mm)
Height (Max)：0.906" (23.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Download product information

TLF14CB2730R4K1

Overview

The TLF14CB2730R4K1 is a two-line common mode choke manufactured by Taiyo Yuden. It is designed for through-hole mounting and operates within a temperature range of -25°C to 105°C. The component has a maximum current rating of 400mA. It belongs to the TLF14 series and is packaged in bulk.

Feature Summary

Provides common mode noise suppression for two-line circuits
Supports through-hole vertical mounting configuration

Applications

Power line filtering
General electronic circuit noise suppression

Procurement Notes

Verify the specific datasheet for detailed impedance characteristics and DC resistance values, as these parameters are not fully specified in general listings. Confirm package dimensions and pin configurations against official documentation before integration. Ensure the operating temperature range meets system requirements.

Selection Notes

Select this component when a through-hole solution is required for low-current applications up to 400mA. Consider the TLF14 series compatibility if space constraints allow for vertical mounting. Evaluate thermal performance within the -25°C to 105°C range for the intended environment.

Part Context

Taiyo Yuden produces a wide range of passive components, including filters and chokes. The TLF14 series represents their offerings in common mode chokes for various electronic applications. This part is part of their broader portfolio of electronic components used in consumer and industrial electronics.
