Product Detailed Parameters
- Description：CMC 800MA 2LN TH
- Series：TLF14
- Mfr：Taiyo Yuden
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：800mA
- DC Resistance (DCR) (Max)：420mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.866" L x 0.669" W (22.00mm x 17.00mm)
- Height (Max)：0.906" (23.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Download product information
Overview

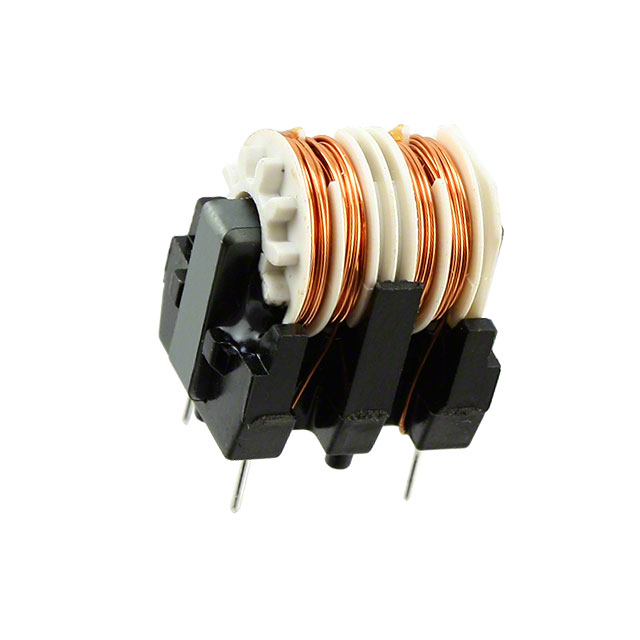

The TLF14CB5620R8K1 is a two-line common mode choke manufactured by Taiyo Yuden, designed for through-hole mounting. It features a minimum common mode inductance of 5600 µH and a maximum DC resistance of 0.42 Ω. The component supports a rated current of 0.8 A and an AC voltage rating of 250 V. Operating temperatures range from -25 °C to 105 °C. Physical dimensions are 22.0 mm in length, 17.0 mm in width, and 23.0 mm in height.
Feature Summary
- Provides effective noise suppression for power lines using two-line common mode filtering technology.
- Constructed for reliable through-hole mounting on printed circuit boards.
- Engineered to operate within a wide temperature range suitable for industrial environments.
Applications
- Power line filtering in electronic equipment
- Noise reduction in AC power circuits
- EMI suppression in industrial control systems
Procurement Notes
Verify the discontinued status with the manufacturer before procurement planning. Confirm that alternative components meet the required inductance and current ratings. Check for RoHS compliance documentation if required by specific project standards. Ensure physical footprint compatibility during replacement evaluation.
Selection Notes
Select this component when a high-inductance common mode choke is required for through-hole applications. Ensure the design accommodates the specified 0.8 A rated current and 250 V AC rating. Verify that the physical dimensions fit the available board space. Consider thermal management requirements given the operating temperature range.
Part Context
This component belongs to Taiyo Yuden's common mode choke series, specifically designed for power line noise suppression. It utilizes a core material optimized for high inductance values while maintaining low DC resistance. The through-hole package ensures mechanical stability in applications requiring robust connections.
Replacement Considerations
Public confirmed substitute part numbers are not available due to the discontinued status. Evaluate components with similar inductance (5600 µH min), current rating (0.8 A), and physical dimensions. Verify electrical characteristics match the original design requirements before implementation.
FAQ
What is the minimum common mode inductance value?
The minimum common mode inductance is 5600 µH.
What is the maximum DC resistance?
The maximum DC resistance is 0.42 Ω.
Is this component suitable for through-hole mounting?
Yes, the TLF14CB5620R8K1 is designed for through-hole mounting.
