TLF14CB6820R8K1

Overview

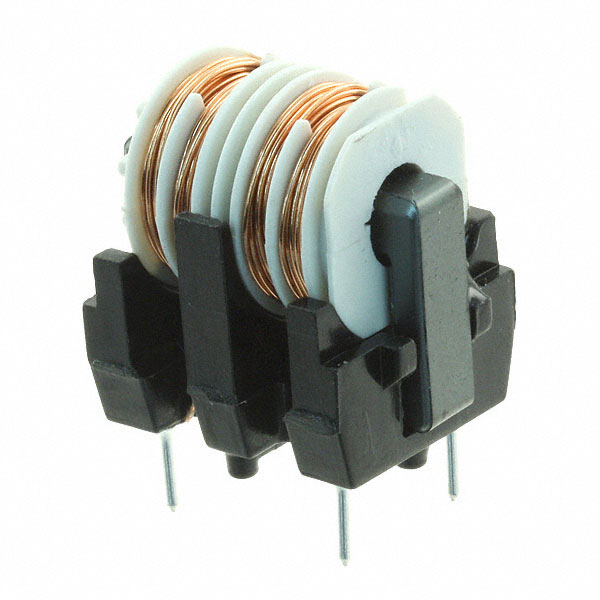

The TLF14CB6820R8K1 is a two-line common mode choke coil designed for AC line applications. It features a through-hole mounting style with a case size of 17.0 x 22.0 mm. The component provides a minimum common mode inductance of 6800 µH and has a maximum DC resistance of 0.6 Ω. It supports a rated current of 0.8 A and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Designed as a leaded common mode choke coil specifically for AC line filtering
• Provides high common mode inductance to suppress electromagnetic interference
• Constructed for through-hole mounting on printed circuit boards

Applications

• AC power line filtering
• Electromagnetic interference suppression in electronic equipment
• Common mode noise reduction in power supply circuits

Procurement Notes

Verify the specific manufacturer part number against official Taiyo Yuden documentation to ensure accuracy. Confirm that the component status aligns with project requirements, noting that availability may vary. Ensure that the through-hole package dimensions and electrical specifications meet the design constraints before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring robust common mode noise suppression for AC lines. Consider the 0.8 A rated current and 6800 µH inductance for appropriate filtering performance. Verify that the through-hole form factor fits the target PCB layout and assembly process requirements effectively.

Part Context

This component belongs to Taiyo Yuden's lineup of leaded common mode choke coils intended for AC line protection. These components are engineered to mitigate electromagnetic interference in power applications. The series offers reliable noise suppression capabilities suitable for various electronic devices requiring compliance with emission standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
