TLF14CB6830R2K1

Overview

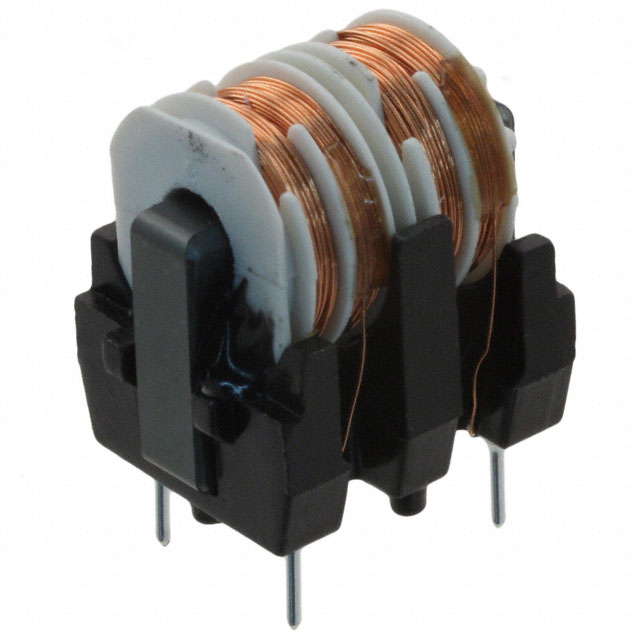

The TLF14CB6830R2K1 is a single-phase common mode choke manufactured by Taiyo Yuden. It features a minimum common mode inductance of 68 mH and a maximum rated current of 0.2 A. The component has a maximum DC resistance of 6.5 Ω and utilizes a through-hole mounting style. Its physical dimensions are 17.0 mm in width, 22.0 mm in length, and 23.0 mm in height.

Feature Summary

• Provides high common mode noise suppression with 68 mH inductance
• Designed for reliable through-hole PCB integration
• Supports continuous operation at up to 0.2 A

Applications

• Single-phase EMI filtering circuits
• Power supply input stages
• Noise suppression in low-current electronic equipment

Procurement Notes

Verify the specific ordering suffix K1 against the manufacturer's latest documentation to ensure correct tolerance and packaging specifications. Confirm that the 0.2 A rated current meets the design requirements for the target application circuit before finalizing procurement orders.

Selection Notes

Select this component when a high-inductance common mode choke is required for single-phase applications. Ensure the 6.5 Ω DC resistance is acceptable for the voltage drop constraints. Verify that the through-hole package fits the available PCB real estate and mechanical clearance.

Part Context

This part belongs to the TLF series of filters from Taiyo Yuden. It is categorized as a common mode choke designed for electromagnetic interference reduction. The product line focuses on providing robust noise filtering solutions for power and signal lines in various electronic assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
