TLF14CBH6830R2K1

Overview

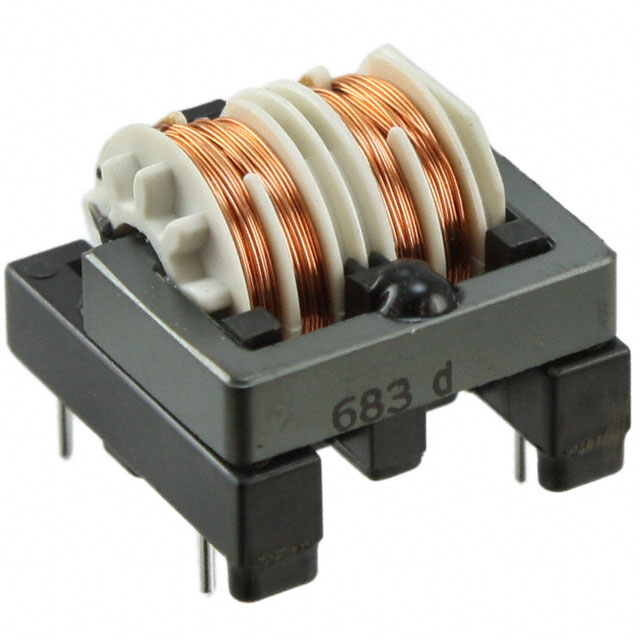

The TLF14CBH6830R2K1 is a two-line common mode choke manufactured by Taiyo Yuden, designed for through-hole mounting. It features a minimum common mode inductance of 68 mH at 1 kHz and a maximum DC resistance of 6.5 Ω. The component supports a rated current of 0.2 A and operates within a temperature range of -25 °C to +105 °C. Its physical dimensions are 23.0 mm x 22.0 mm x 17.0 mm. The device complies with RoHS standards and is intended for power line filtering applications.

Feature Summary

• Provides effective common mode noise suppression for dual-line circuits
• Engineered for robust through-hole PCB integration
• Maintains stable performance across extended industrial temperature ranges

Applications

• Power line filtering in electronic equipment
• Noise suppression in AC/DC converter inputs
• EMI mitigation in household appliance power stages

Procurement Notes

Verify the specific suffix R2K1 to confirm packaging configuration. Confirm RoHS compliance status as lead-free. Check manufacturer discontinuation notices prior to final design approval. Ensure through-hole footprint compatibility with target PCB layout. Validate thermal ratings against operational environment requirements.

Selection Notes

Select this component when high inductance values are required for low-frequency noise attenuation. Consider the 0.2 A current rating for appropriate load matching. Evaluate the 6.5 Ω DC resistance impact on circuit efficiency. Compare physical dimensions against available board space constraints.

Part Context

This part belongs to the TLF series of common mode chokes from Taiyo Yuden. The series offers various inductance options for different filtering needs. These components are widely used in power supply input stages to meet electromagnetic interference regulations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
