Product Detailed Parameters
- Description：CMC 10MH 230MA 2LN TH
- Series：TLF9
- Mfr：Taiyo Yuden
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：230mA
- DC Resistance (DCR) (Max)：4.5Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.433" W (17.00mm x 11.00mm)
- Height (Max)：0.630" (16.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：10 mH @ 1 kHz
- Impedance @ Frequency：-
Download product information
Overview

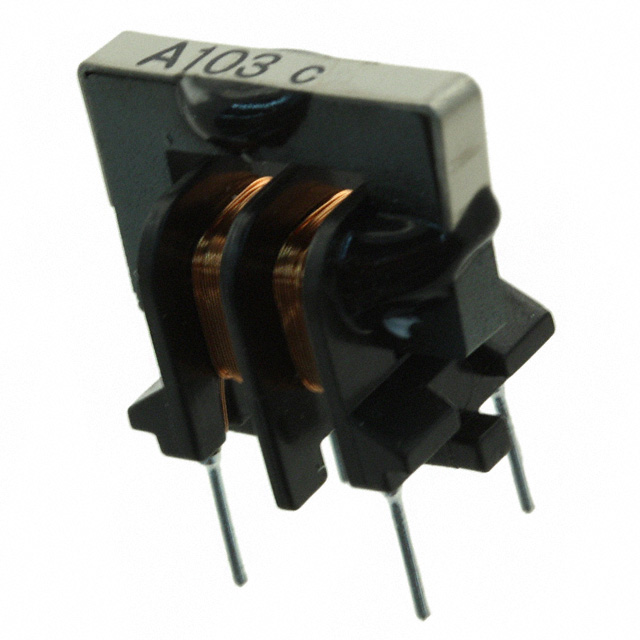

The Taiyo Yuden TLF9UA103WR23K1 is a leaded common mode choke coil designed for AC line applications. It features an inductance of 10 mH at 1 kHz and supports a maximum current rating of 230 mA. The component has a maximum DC resistance of 4.5 ohms and operates within a temperature range of -25°C to 115°C. It utilizes a vertical through-hole package with four PC pins, measuring 17.00 mm in length, 11.00 mm in width, and up to 16.00 mm in height.
Feature Summary
- Designed specifically for filtering common mode noise on AC power lines
- Utilizes a vertical through-hole mounting configuration for secure PCB integration
- Constructed as a two-line choke coil for differential signal handling
Applications
- AC power line filtering
- Electromagnetic interference suppression in consumer electronics
- Power supply input stages
Procurement Notes
Verify the obsolete lifecycle status before procurement planning. Confirm that the specific suffix K1 matches the required packaging or specification variant. Ensure compatibility with existing board layouts due to the vertical through-hole form factor. Check for available authorized distributors as standard stock may be limited.
Selection Notes
Select this component when a 10 mH inductance at 1 kHz is required for AC line noise reduction. The 230 mA current rating dictates suitability for low-power applications. The vertical 4-pin through-hole package must align with the target PCB design constraints. Verify operating temperature requirements against the -25°C to 115°C range.
Part Context
This part belongs to the TLF series of leaded common mode chokes from Taiyo Yuden. It is distinct from surface mount variants and other series like LHL. The TLF9UA designation indicates specific physical dimensions and winding characteristics tailored for AC line protection.
Replacement Considerations
The related part number TLF9UA103WR23 is identified as a comparable variant within the same product family. Verify pinout and electrical specifications before substitution.
