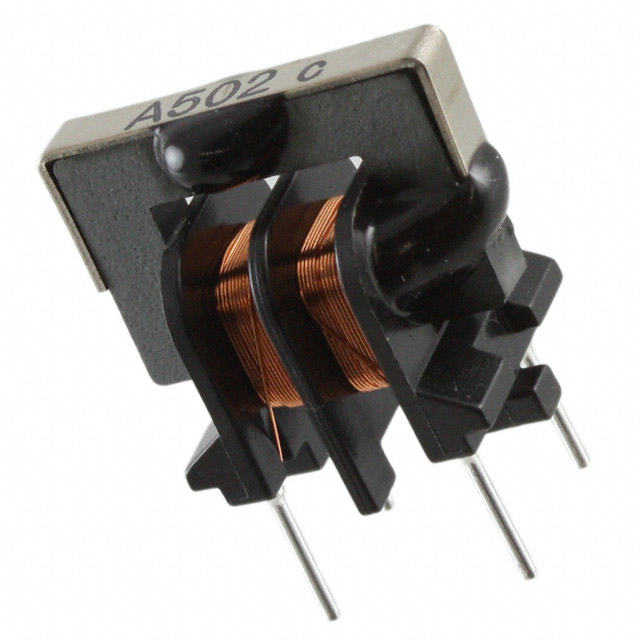

TLF9UA502WR32K1

Description：CMC 5MH 320MA 2LN TH
Series：TLF9
Mfr：Taiyo Yuden
Package：Bulk

SKU:0859463f9e45 Category: Common Mode Chokes Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5MH 320MA 2LN TH
Series：TLF9
Mfr：Taiyo Yuden
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：320mA
DC Resistance (DCR) (Max)：2.5Ohm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max)：0.630" (16.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5 mH @ 1 kHz
Impedance @ Frequency：-

Download product information

TLF9UA502WR32K1

Overview

The TLF9UA502WR32K1 is a through-hole common mode choke coil designed for AC line applications. It features a single-channel configuration with a common mode inductance of 5 mH at 1 kHz. The component supports a maximum DC current of 320 mA and has a maximum DC resistance of 2.5 Ohms. It operates within a temperature range of -25°C to +105°C. The physical dimensions are 17.0 mm x 11.0 mm, utilizing a vertical PC pin termination style.

Feature Summary

Designed specifically for filtering noise on AC power lines
Utilizes a robust through-hole mounting style for secure PCB attachment
Constructed as a leaded common mode choke coil for efficient interference suppression

Applications

AC line noise filtering
Power line EMI suppression
Electronic equipment input stages

Procurement Notes

Verify the specific ordering suffix and package variant to ensure compatibility with assembly requirements. Confirm that the component status is active for new designs, as some listings indicate phase-out status. Cross-reference the manufacturer's latest datasheet for any updates on material compliance or dimensional tolerances before finalizing procurement orders.

Selection Notes

Select this component when a single-channel solution is required for AC line protection. Ensure the circuit design accommodates the 320 mA rated current limit and the 2.5 Ohm DC resistance. Verify that the through-hole footprint matches the PCB layout constraints and that the operating temperature range meets the environmental specifications of the target application.

Part Context

This part belongs to the TLF series of common mode chokes from Taiyo Yuden. These components are engineered for power line applications where effective electromagnetic interference reduction is critical. The series offers various inductance values and current ratings to suit different power supply architectures and noise environments.
