TLF9UA802WR25K1

Overview

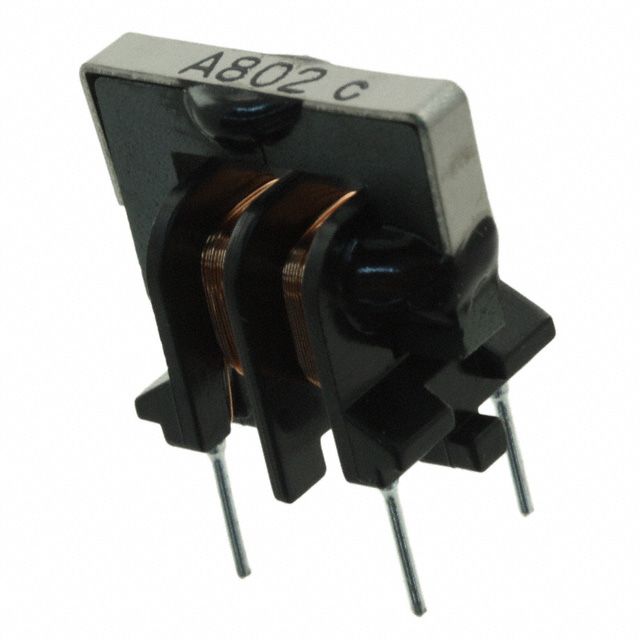

The Taiyo Yuden TLF9UA802WR25K1 is a through-hole common mode choke coil designed for AC line applications. It features an inductance of 8 mH with a tolerance of +100%/-10%. The component has a maximum DC resistance of 4 Ω and a rated current of 250 mA. Operating temperature range spans from -25°C to +105°C. Physical dimensions are 11.0 mm x 17.0 mm.

Feature Summary

• Designed specifically for filtering noise on AC power lines
• Through-hole mounting configuration for PCB integration
• RoHS compliant construction

Applications

• AC line noise suppression
• Power supply input filtering

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before finalizing design-in decisions. Confirm that the +100%/-10% inductance tolerance aligns with circuit requirements. Ensure the 250 mA rated current meets the application's load demands. Check for any phaseout status or end-of-life notifications directly from Taiyo Yuden official channels prior to procurement.

Selection Notes

Select this component when through-hole assembly is required for AC line filtering. Consider the 8 mH inductance value for low-frequency noise attenuation. Evaluate the 4 Ω DC resistance impact on voltage drop. Verify compatibility with the -25°C to +105°C operating environment. Compare physical footprint against available PCB space constraints.

Part Context

This part belongs to the TLF series of common mode chokes from Taiyo Yuden. These components are engineered for electromagnetic interference suppression in electronic equipment. The series offers various inductance values and current ratings to suit different power line filtering needs across consumer and industrial electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
