TLF9UAH153W0R2K1

Overview

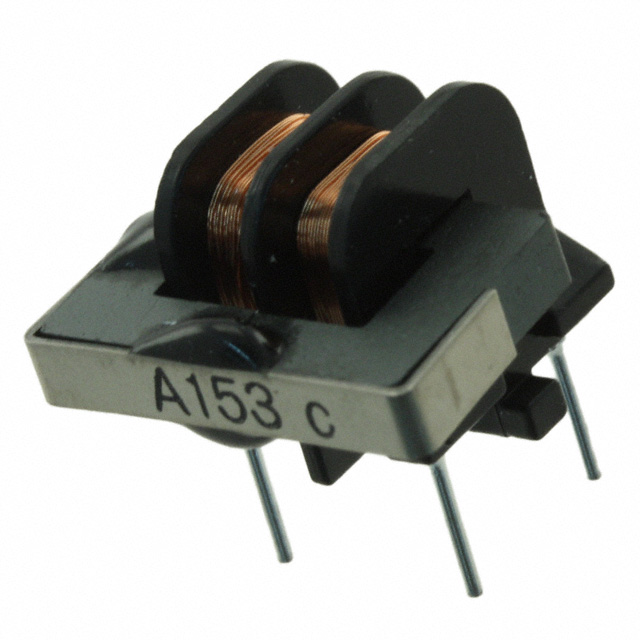

The TLF9UAH153W0R2K1 is a through-hole common mode choke coil from Taiyo Yuden, designed for AC line filtering. It features an inductance of 15mH and a maximum DC current rating of 200mA. The component has a maximum DC resistance (DCR) of 5.5 Ohms and operates within a temperature range of -25°C to +105°C. It utilizes a radial leaded package suitable for PCB mounting.

Feature Summary

• Provides common mode noise suppression for AC power lines
• Radial through-hole construction for standard PCB integration
• Rated for high-temperature operation up to 105°C

Applications

• AC power line filtering
• Electromagnetic interference suppression in electronic equipment

Procurement Notes

Verify part status as the source indicates this model may be obsolete or discontinued. Confirm availability with authorized distributors prior to ordering. Ensure the specific suffix matches design requirements, as variations exist within the TLF series. Check RoHS compliance documentation if required by target market regulations.

Selection Notes

Select this component when a 15mH inductance and 200mA current rating are required for common mode noise reduction. The 5.5 Ohm DCR must be compatible with circuit loss budgets. Verify that the radial through-hole form factor fits the mechanical constraints of the printed circuit board assembly process.

Part Context

This component belongs to the TLF series of common mode chokes manufactured by Taiyo Yuden. These devices are engineered for power line applications, offering reliable noise attenuation. The TLF9UAH153W0R2K1 specifically denotes the 15mH variant within this family, distinguished by its specific current and resistance characteristics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Consult manufacturer cross-reference guides for equivalent specifications.
