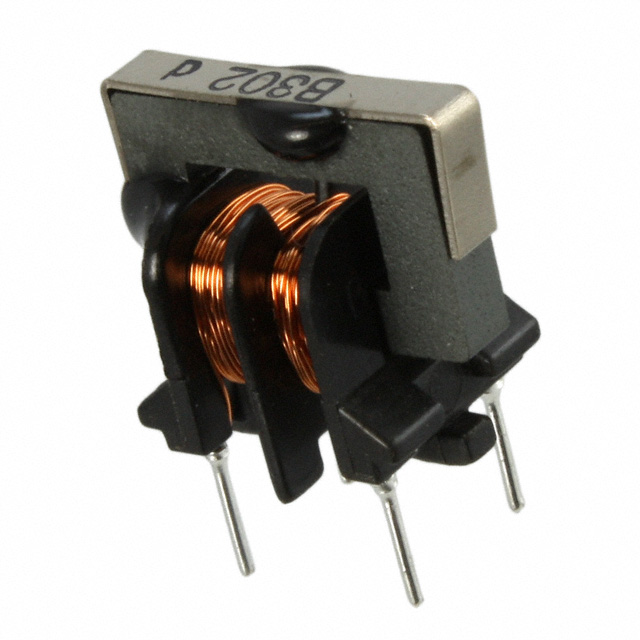

TLF9UB302WK1

Description：CMC 400MA 2LN 20 KOHM TH
Series：TLF9
Mfr：Taiyo Yuden
Package：Bulk

SKU:6267cae8b730 Category: Common Mode Chokes Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 400MA 2LN 20 KOHM TH
Series：TLF9
Mfr：Taiyo Yuden
Package：Bulk
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：400mA
DC Resistance (DCR) (Max)：1.5Ohm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max)：0.630" (16.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：20 kOhms @ 1 MHz

Download product information

TLF9UB302WK1

Overview

The TLF9UB302WK1 is a leaded common mode choke coil designed for DC and signal lines. It features a radial termination style and operates within a temperature range of -25°C to +105°C. The component provides an impedance of 20 kOhms at 1 MHz, with a maximum DC current rating of 400 mA and a maximum DC resistance of 1.5 Ohms.
