TLF9UBH802WK1

Overview

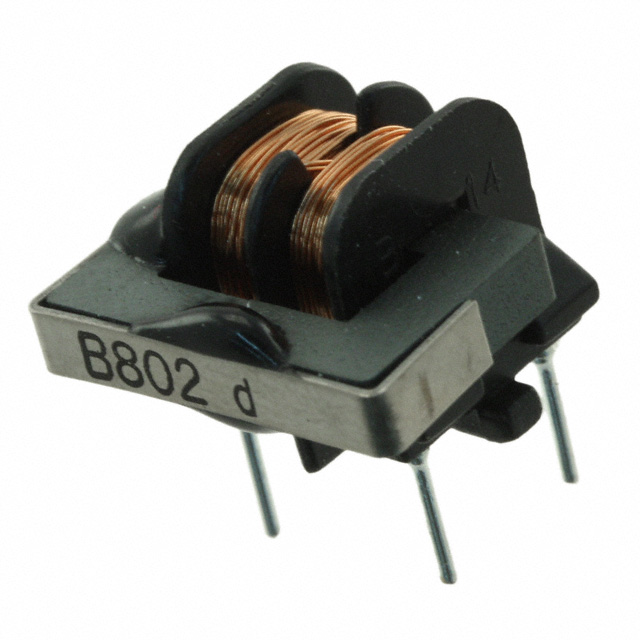

The TLF9UBH802WK1 is a leaded common mode choke coil manufactured by Taiyo Yuden, designed for DC and signal line applications. It features a radial through-hole termination style with an inductance of 8 mH and an impedance of 40 kOhms at 700 kHz. The component supports a maximum DC current of 300 mA and has a maximum DC resistance of 3 Ohms. It operates within a temperature range of -25°C to +105°C and measures 17 mm in length, 15 mm in width, and 12 mm in height.

Feature Summary

• Provides common mode noise suppression for DC and signal lines
• Utilizes radial through-hole mounting for secure mechanical attachment
• Engineered for high impedance performance at specific frequencies

Applications

• DC power line filtering
• Signal line noise reduction
• Electronic equipment EMC mitigation

Procurement Notes

Verify the exact part number suffix and manufacturer specifications against official Taiyo Yuden documentation before procurement. Confirm that the component meets required RoHS compliance standards for your region. Ensure that the through-hole package dimensions and pin spacing are compatible with your PCB layout constraints. Check for any recent product discontinuance notifications or lifecycle status updates from the manufacturer to ensure long-term availability.

Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation on DC and signal lines. Consider the 300 mA current rating and 3 Ohm DC resistance to ensure minimal voltage drop and thermal issues under load. Verify that the 40 kOhm impedance at 700 kHz aligns with the noise frequencies present in your application. Ensure the operating temperature range of -25°C to +105°C covers the environmental conditions of the final device.

Part Context

This component belongs to Taiyo Yuden's series of leaded common mode chokes, specifically designed for general electronic equipment. It serves as a passive filter element to suppress electromagnetic interference. The product is distinct from surface mount alternatives, offering a through-hole solution for applications where mechanical stability and ease of assembly are prioritized over miniaturization.

Replacement Considerations

Consult official Taiyo Yuden documentation for confirmed substitute part numbers. No public substitutes are verified in the provided data.
