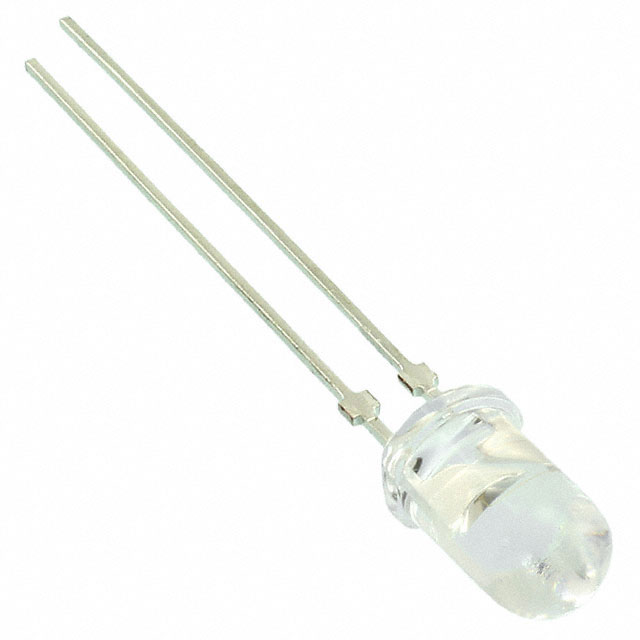

TLHP5100

$0.08

Description：LED GREEN CLEAR T-1 3/4 T/H
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Bulk

SKU:e6b4301616aa Category: LED Indication - Discrete Brand: Vishay Semiconductor Opto Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TLHP5100 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Vishay Semiconductor Opto Division. Its product description is LED GREEN CLEAR T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for TLHP5100

Description：LED GREEN CLEAR T-1 3/4 T/H
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Bulk
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：66mcd
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.4V
Current - Test：20mA
Viewing Angle：18°
Mounting Type：Through Hole
Wavelength - Dominant：560nm
Wavelength - Peak：555nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：13.20mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for TLHP5100

TLHP5100

LED Indication - Discrete Overview

The TLHP5100 is a green light-emitting diode manufactured by Vishay Semiconductor Opto Division. It features a clear lens and emits翠绿 (emerald green) light with a peak wavelength of 560nm. The component utilizes a 5mm radial through-hole package design, measuring 13.20mm in height. It offers a viewing angle of 18 degrees and operates with a typical forward voltage of 2.4V.

LED Indication - Discrete Feature Summary

Produces emerald green light output for visual indication
Features a clear lens to maximize light transmission
Designed for standard radial through-hole mounting

LED Indication - Discrete Applications

Visual status indication on electronic equipment panels
Indicator lights for control systems
General-purpose signal indication in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the current lifecycle status before integration, as this part may be discontinued or obsolete. Confirm that the 5mm radial form factor and 13.20mm height fit the mechanical constraints of the target assembly. Ensure the 18-degree viewing angle meets visibility requirements for the specific application environment.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with a wide viewing cone is required. The 2.4V forward voltage drop dictates the necessary series resistance calculation for the driving circuit. Consider the physical dimensions and through-hole requirement against available PCB space and manufacturing capabilities.

LED Indication - Discrete Part Context

This LED belongs to Vishay's discrete optoelectronic portfolio, focusing on standard indication components. It serves as a fundamental building block for visual signaling in various electronic assemblies, distinct from complex integrated optocouplers or high-power lighting solutions offered by the same manufacturer.
