TLP620M(GR-LF5,E

$0.48

Description：OPTOISOLATOR 5KV 1CH TRANS 4-SMD
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tube

SKU:8c56cd14ae22 Category: Transistor, Photovoltaic Output Optoisolators Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

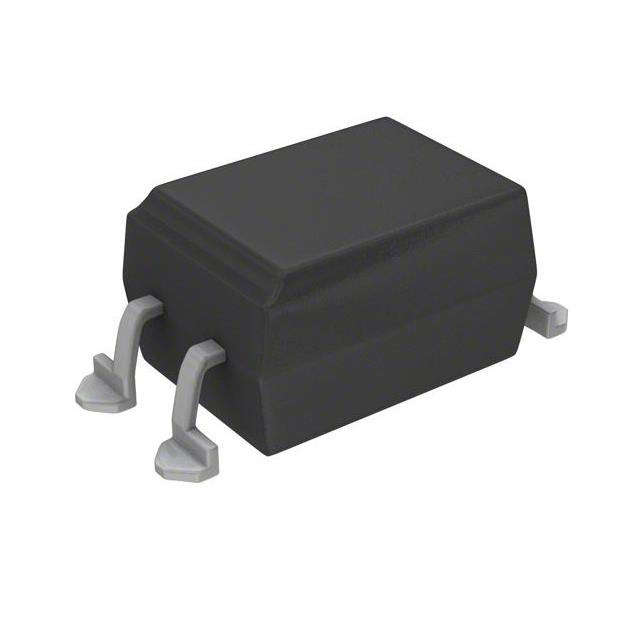

TLP620M(GR-LF5,E is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Toshiba Semiconductor and Storage. Its product description is OPTOISOLATOR 5KV 1CH TRANS 4-SMD. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for TLP620M(GR-LF5,E

Description：OPTOISOLATOR 5KV 1CH TRANS 4-SMD
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tube
Number of Channels：1
Voltage - Isolation：5000Vrms
Current Transfer Ratio (Min)：50% @ 5mA
Current Transfer Ratio (Max)：600% @ 5mA
Turn On / Turn Off Time (Typ)：3µs, 3µs
Rise / Fall Time (Typ)：2µs, 3µs
Input Type：AC, DC
Output Type：Transistor
Voltage - Output (Max)：80V
Current - Output / Channel：50mA
Voltage - Forward (Vf) (Typ)：1.25V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：300mV
Operating Temperature：-55°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for TLP620M(GR-LF5,E

TLP620M(GR-LF5,E

Transistor, Photovoltaic Output Optoisolators Overview

The TLP620M(GR-LF5,E is a single-channel transistor output optocoupler manufactured by Toshiba Semiconductor and Storage. It features an AC/DC input LED paired with a phototransistor in a 4-DIP package. Key electrical parameters include a collector-emitter voltage of 80V, a maximum DC forward current of 50mA, and a typical forward voltage of 1.25V. The device provides 5000Vrms isolation voltage and supports a wide operating temperature range from -55°C to 125°C. Switching characteristics include typical rise/fall times of 2µs/3µs and on/off times of 3µs/3µs.

Transistor, Photovoltaic Output Optoisolators Feature Summary

Supports both AC and DC input signals for versatile circuit integration
Provides high-voltage electrical isolation between input and output circuits
Features low saturation voltage for efficient signal switching

Transistor, Photovoltaic Output Optoisolators Applications

Industrial control systems requiring isolated signal transmission
AC mains detection and monitoring circuits
Solid-state relay driver interfaces

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix GR against official Toshiba documentation to confirm lead-free status and packaging type. Ensure compatibility with required safety certifications such as UL or VDE if used in regulated equipment. Confirm availability through authorized distributors as stock levels vary.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when AC input capability is required alongside standard transistor output performance. Compare CTR specifications at 5mA against application requirements. Verify that the 4-DIP package dimensions fit the target PCB layout constraints.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the TLP620M series of transistor output optocouplers. The series includes variants with different packaging options and certification markings. The GR suffix typically denotes specific manufacturing or compliance attributes within the product line.
