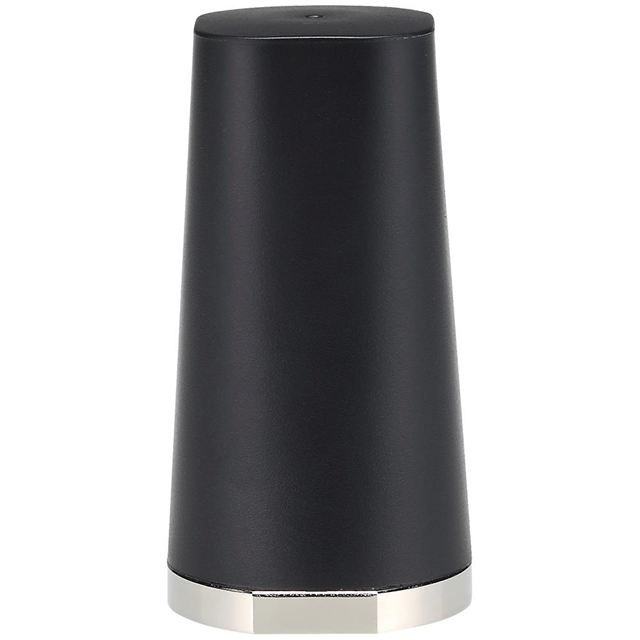

TLS.30.1F11 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 433MHZ WHIP STR N MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for TLS.30.1F11
- Description：RF ANT 433MHZ WHIP STR N MALE
- Series：Shockwave
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：433MHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-15dB
- Gain：-1.19dBi
- Features：-
- Termination：N Type Male
- Ingress Protection：IP67, IP69K
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：3.128" (79.45mm)
- Applications：ISM
- Power - Max：100 W
Antennas RF datasheet and documents for TLS.30.1F11
Antennas RF Overview
The TLS.30.1F11 is a base-mount RF antenna from the Taoglas Shockwave series, designed for ISM band operations at 868 MHz. It features a straight whip configuration with an N-type male connector for secure mounting. The unit provides -1.19 dBi gain and supports IP67 and IP69K waterproof ratings, ensuring reliability in harsh environments.
Antennas RF Feature Summary
- Shockwave series construction for enhanced durability
- IP67 and IP69K certified waterproof protection
- Base mount design with unique indent tab for wrench locking
Antennas RF Applications
- ISM band wireless communication systems
- Industrial IoT sensor networks
- Outdoor telemetry equipment requiring high ingress protection
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and connector specifications. Ensure compatibility with N-type female mating connectors. Confirm environmental rating requirements match the intended deployment conditions before finalizing procurement.
Antennas RF Selection Notes
Select this model for applications requiring robust base-mounted antennas with high waterproof standards. The straight whip design suits vertical polarization needs. Consider the -1.19 dBi gain level for range requirements within the 868 MHz ISM band.
Antennas RF Part Context
This component belongs to the Taoglas Shockwave series, which emphasizes ruggedized performance for industrial and outdoor use cases. The series focuses on providing reliable connectivity solutions with enhanced physical protection against environmental factors.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Taoglas channels for equivalent models with similar form factor and electrical characteristics.
