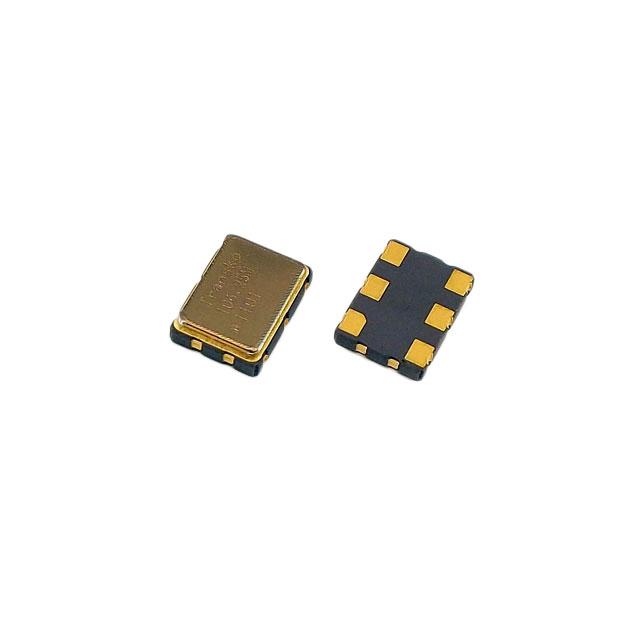

TLSM-L20HM25ST1-155.520M is listed in the Oscillators range at ChipApex. The manufacturer field lists Transko Electronics, Inc.. Its product description is XTAL OSC XO 155.5200MHZ LVDS SMD. Review the specifications below when checking this part for your BOM.
Oscillators specifications for TLSM-L20HM25ST1-155.520M
- Description：XTAL OSC XO 155.5200MHZ LVDS SMD
- Series：TLSM
- Mfr：Transko Electronics, Inc.
- Package：Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：155.52 MHz
- Function：Enable/Disable
- Output：LVDS
- Voltage - Supply：2.5V
- Frequency Stability：±20ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：0°C ~ 70°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：100mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.063" (1.60mm)
- Supplier Device Package：-
Oscillators datasheet and documents for TLSM-L20HM25ST1-155.520M
Oscillators Overview
The TLSM-L20HM25ST1-155.520M is a crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a nominal frequency of 155.52 MHz. It utilizes LVDS output logic and requires a 2.5V supply voltage. The component features an enable/disable control function for power management. It is housed in a compact 6-SMD, No Lead package suitable for surface mount applications.
Oscillators Feature Summary
- LVDS output interface
- Enable/Disable control
- Surface mount package
Oscillators Applications
- Telecommunications equipment
- Data communication systems
- Network infrastructure
Oscillators Procurement Notes
Verify the specific part number against official Transko Electronics documentation to confirm the LVDS output type and 2.5V supply requirement. Ensure the 6-SMD no-lead package dimensions match the target PCB footprint. Confirm that the enable/disable functionality aligns with system power management needs before procurement.
Oscillators Selection Notes
Select this component when a 155.52 MHz clock signal with LVDS signaling is required. The 2.5V supply voltage must be compatible with the system design. Consider the enable/disable feature for power efficiency. The SMD package dictates the assembly process and board layout constraints.
Oscillators Part Context
This model belongs to the Transko Electronics XO series, designed for high-frequency clock generation. The 'L' in the part number typically indicates LVDS output, while '25' denotes the 2.5V supply. The suffix specifies the exact frequency and package style within the product line.
Oscillators Replacement Considerations
Direct substitutes must match the 155.52 MHz frequency, LVDS output, 2.5V supply, and 6-SMD package. Verify pin compatibility and electrical specifications with alternative manufacturers before substitution.
