TLSM5-L50CQ25ST1-156.250M

Oscillators Overview

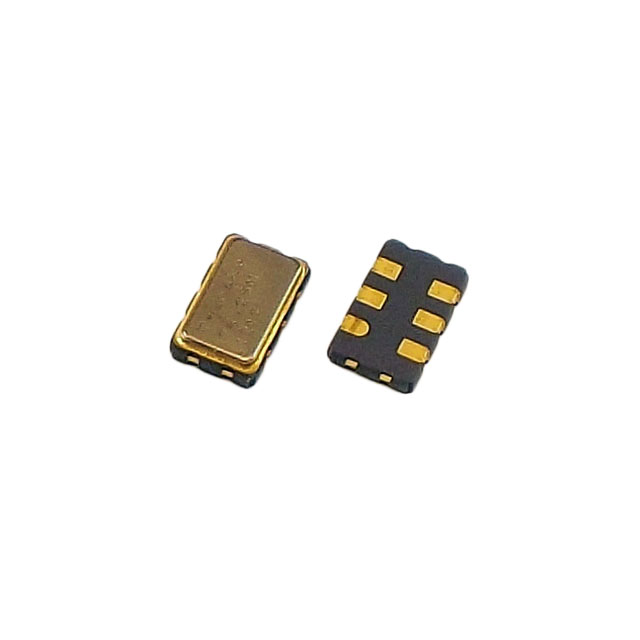

The TLSM5-L50CQ25ST1-156.250M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc. It operates at a fixed frequency of 156.25 MHz and utilizes LVDS output signaling for high-speed data transmission applications. The device functions with a supply voltage of 2.5V and includes an enable/disable control feature for power management. It is housed in a compact 6-SMD, no lead surface-mount package with dimensions of 5.00mm x 3.20mm.

Oscillators Feature Summary

• LVDS output interface for low-voltage differential signaling
• Integrated enable/disable pin for power control
• Surface-mount package design for automated assembly

Oscillators Applications

• High-speed serial communication interfaces
• Data acquisition systems requiring precise clocking
• Telecommunications equipment signal processing

Oscillators Procurement Notes

Verify the specific output load capacitance and drive level requirements against the target circuit design before procurement. Confirm that the 2.5V supply voltage aligns with the system's power rails. Ensure the LVDS output compatibility matches the receiving component's input specifications to guarantee signal integrity and proper operation within the intended application environment.

Oscillators Selection Notes

Select this component when a stable 156.25 MHz reference clock is required for LVDS-based digital circuits. Consider the 2.5V operating voltage and the availability of the enable function for power-sensitive designs. Evaluate the physical footprint constraints to ensure the 6-SMD package fits within the available PCB area while maintaining adequate spacing for thermal dissipation and manufacturing tolerances.

Oscillators Part Context

This part belongs to the TLSM5 series of oscillators from Transko Electronics, Inc., which covers frequencies ranging from 12 MHz to 800 MHz. The series offers various output types and supply voltages, allowing designers to choose components based on specific speed and power requirements. The TLSM5 model specifically targets applications needing reliable clock generation in compact electronic systems.

Oscillators Replacement Considerations

Direct substitutes may include other 156.25 MHz LVDS oscillators in similar SMD packages from different manufacturers, provided electrical parameters such as supply voltage and output swing are compatible. Verify pinout configurations and mechanical dimensions to ensure seamless integration without redesigning the host circuit board or modifying existing firmware settings.
