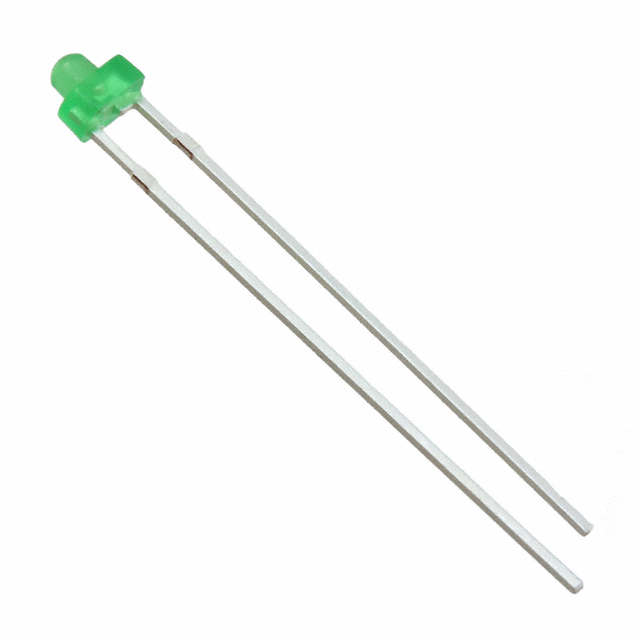

TLUG2400-MS12Z

Description：LED GREEN DIFFUSED 1.8MM T/H
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Tape & Reel (TR)

SKU:c0919c0b9601 Category: LED Indication - Discrete Brand: Vishay Semiconductor Opto Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TLUG2400-MS12Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Vishay Semiconductor Opto Division. Its product description is LED GREEN DIFFUSED 1.8MM T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for TLUG2400-MS12Z

Description：LED GREEN DIFFUSED 1.8MM T/H
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Tape & Reel (TR)
Color：Green
Configuration：Standard
Lens Color：-
Lens Transparency：Diffused
Millicandela Rating：10mcd
Lens Style：Round with Domed Top
Lens Size：1.80mm Dia
Voltage - Forward (Vf) (Typ)：2.4V
Current - Test：20mA
Viewing Angle：40°
Mounting Type：Through Hole
Wavelength - Dominant：568nm
Wavelength - Peak：565nm
Features：-
Package / Case：Radial
Supplier Device Package：1.8mm Miniplast
Size / Dimension：3.30mm L x 2.40mm W
Height (Max)：3.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for TLUG2400-MS12Z

TLUG2400-MS12Z

LED Indication - Discrete Overview

The TLUG2400-MS12Z is a green, dome-style LED from Vishay Semiconductor Opto Division. It features a transparent lens and operates at a forward voltage of 2.4V with a wavelength of 568nm. The component provides a brightness rating of 10mcd and utilizes a radial package configuration.

LED Indication - Discrete Feature Summary

Green light emission with a 568nm wavelength
Dome-style design with a transparent lens
Radial package configuration for through-hole mounting

LED Indication - Discrete Applications

Panel indicators
Status lights
Electronic equipment displays

LED Indication - Discrete Procurement Notes

Verify the specific manufacturer part number against official Vishay documentation to confirm current availability status. Ensure that the selected component matches the required electrical specifications and physical dimensions for your application. Cross-reference datasheets to validate performance characteristics before procurement.

LED Indication - Discrete Selection Notes

Select this component based on its specific green color output and 2.4V forward voltage requirements. Consider the radial package style for appropriate board layout integration. Evaluate the 10mcd brightness level against visibility needs in the target environment.

LED Indication - Discrete Part Context

This discrete LED belongs to Vishay's general-purpose visible dome-style LED series. It is designed for reliable visual indication in various electronic applications. The component represents a standard solution for status signaling within consumer and industrial electronics.
