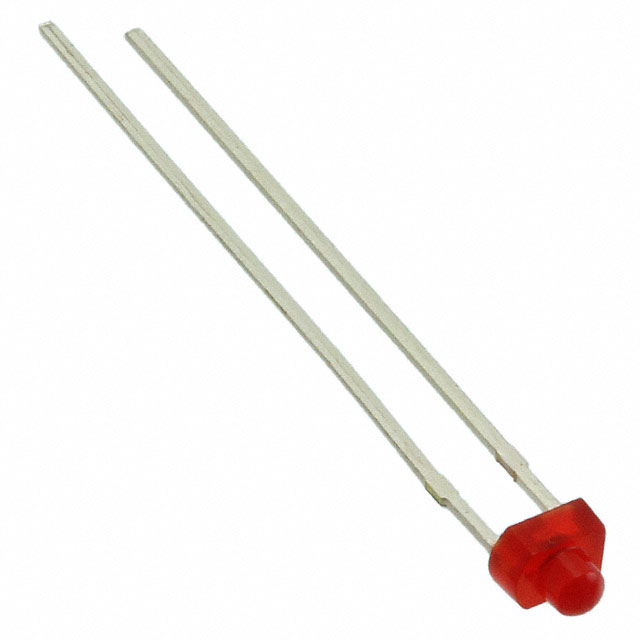

TLUR2400-AS12 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Vishay Semiconductor Opto Division. Its product description is LED RED DIFFUSED 1.8MM T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for TLUR2400-AS12
- Description：LED RED DIFFUSED 1.8MM T/H
- Series：-
- Mfr：Vishay Semiconductor Opto Division
- Package：Tape & Reel (TR)
- Color：Red
- Configuration：Standard
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：15mcd
- Lens Style：Round with Domed Top
- Lens Size：1.80mm Dia
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：40°
- Mounting Type：Through Hole
- Wavelength - Dominant：630nm
- Wavelength - Peak：640nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：1.8mm Miniplast
- Size / Dimension：3.30mm L x 2.40mm W
- Height (Max)：3.60mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for TLUR2400-AS12
LED Indication - Discrete Overview
The TLUR2400-AS12 is a red diffused LED from Vishay Semiconductor Opto Division, designed for through-hole mounting in a 1.8mm package. It features a peak wavelength of 640nm and a dominant wavelength of 630nm. The typical forward voltage is 2V, with a viewing angle of 40°. This component is suitable for low-power indication applications.
LED Indication - Discrete Feature Summary
- Red diffused light emission
- Through-hole 1.8mm package
- Low forward voltage operation
LED Indication - Discrete Applications
- Alarm systems
- Status indicators
- Low-power indication
LED Indication - Discrete Procurement Notes
Verify the exact datasheet version and electrical characteristics against the manufacturer's official documentation before integration. Confirm that the 1.8mm through-hole package dimensions match your PCB layout requirements. Ensure the 630nm dominant wavelength aligns with your optical design specifications for accurate color rendering.
LED Indication - Discrete Selection Notes
Select this component when a compact, low-power red indicator is required for through-hole assembly. The 1.8mm form factor suits space-constrained designs. Consider the 40° viewing angle for visibility requirements. Verify compatibility with standard through-hole soldering processes and ensure the 2V forward voltage fits within your circuit's drive capabilities.
LED Indication - Discrete Part Context
This part belongs to Vishay's Universal LED series, specifically the TLUR2400/01 family. These are tinted LEDs designed for general indication purposes. The AS12 suffix typically denotes specific binning or packaging variations within this product line, ensuring consistent optical performance for mass production applications.
LED Indication - Discrete Replacement Considerations
Consult Vishay's official cross-reference guides for verified substitutes. Ensure any replacement maintains the 1.8mm through-hole footprint, 630nm wavelength, and compatible forward voltage to guarantee mechanical and electrical interchangeability without redesign.
