TLV761C0KVUR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

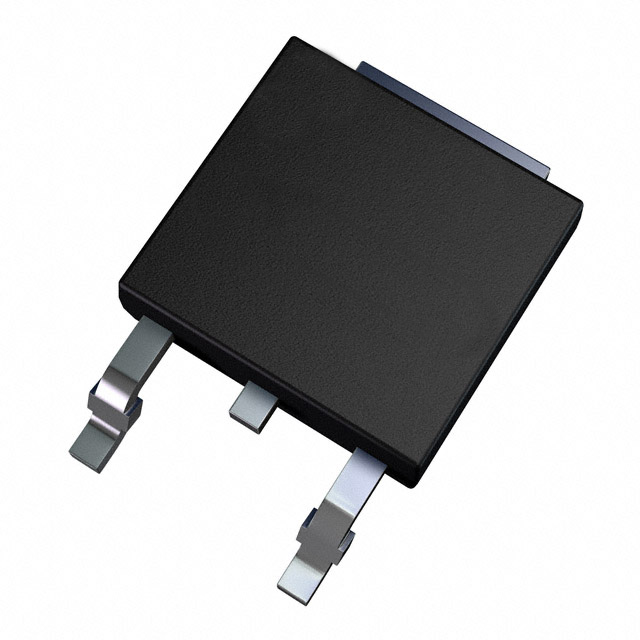

The TLV761C0KVUR is a fixed-output linear voltage regulator from the Texas Instruments TLV761 series, housed in a TO-252-3 package. It provides a fixed 12 V output with a maximum continuous current of 1 A. The device operates within an input voltage range of 2.5 V to 16 V and maintains a typical power supply rejection ratio (PSRR) of 70 dB. Quiescent current is specified at 65 uA. Line regulation is 0.02 %/V, and load regulation is 0.1 %/A. The component supports surface-mount installation and functions reliably across an operating temperature range of -40°C to +125°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Delivers high power supply rejection ratio for effective noise suppression in sensitive circuits
• Provides stable fixed 12 V output with 1 A current capability
• Operates efficiently with low quiescent current consumption

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• General-purpose linear voltage regulation
• Power management in industrial equipment
• Embedded system power supplies

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the exact part number TLV761C0KVUR against manufacturer datasheets to confirm the 12 V fixed output variant. Ensure the TO-252-3 package matches your PCB footprint requirements. Confirm RoHS compliance status through official documentation before procurement. Check humidity sensitivity handling instructions if storage conditions exceed specified limits.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 12 V rail is required with 1 A capacity. The TO-252-3 package suits applications needing moderate thermal dissipation. Consider the 16 V maximum input voltage limit during design. Verify that the 65 uA quiescent current meets system standby power constraints. Ensure input voltage remains above the dropout threshold for stable regulation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the TLV761 family of high-PSRR linear regulators. The series offers various fixed output voltages and packages. The KVUR suffix indicates the TO-252-3 package type. Other variants in the family include different output voltages such as 5 V or adjustable options. The family shares similar electrical characteristics including low quiescent current and high PSRR performance.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Check for other TLV761 variants with compatible output voltages and packages. Verify pinout compatibility if substituting with different package types. Ensure thermal performance meets requirements for alternative components.
