TLVR1005T-R15K

Fixed Inductors Overview

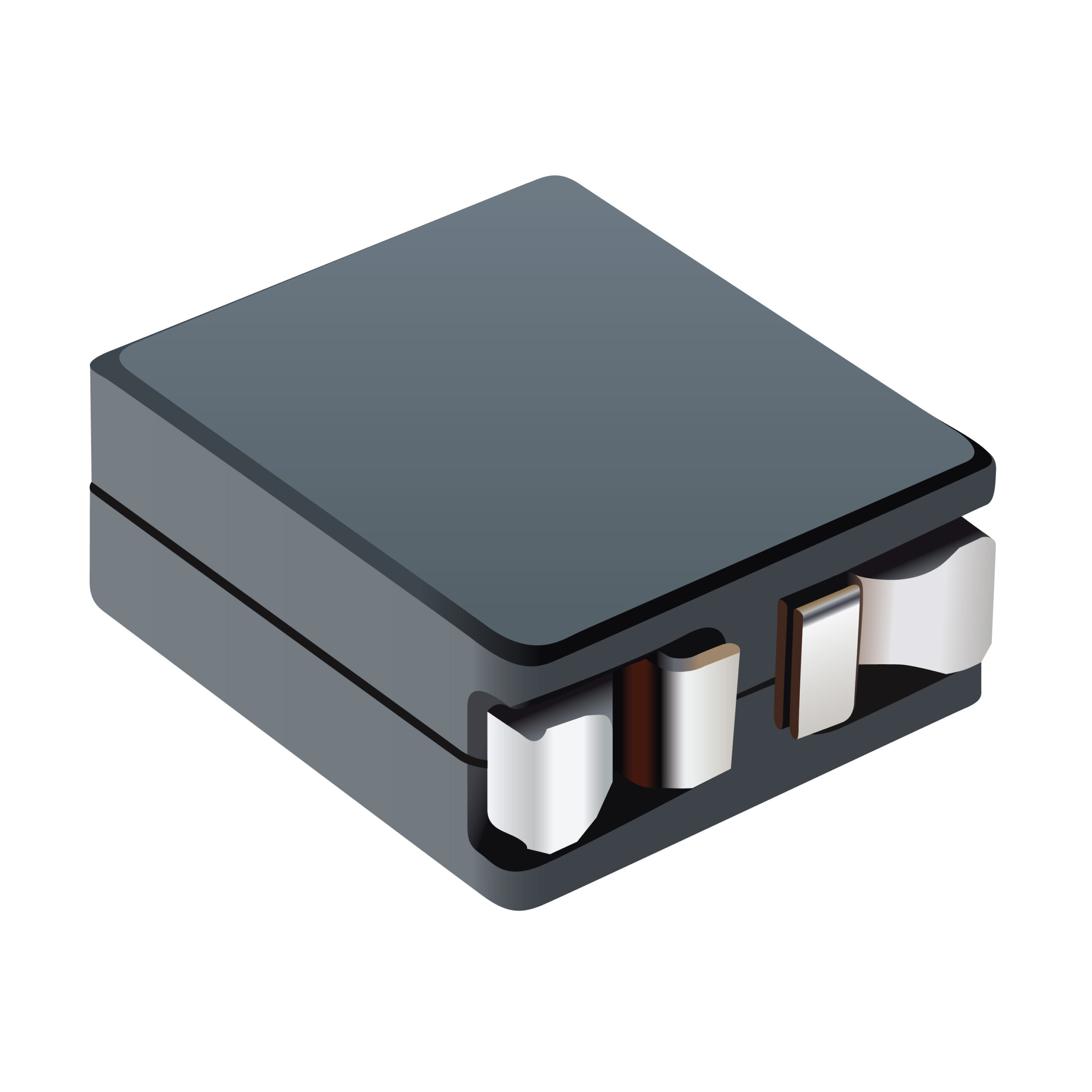

The TLVR1005T-R15K is a fixed surface-mount inductor from Bourns' TLVR series, designed for high-power and multiphase power solutions. It features a dual-winding structure with an inductance of 150 nH ±10%. The component supports a heating current (Irms) of 75 A and a saturation current (Isat) ranging up to 127 A depending on specific configuration. It has a DC resistance of 0.125 mOhm and operates within a temperature range of -40°C to +125°C. Dimensions are 9.7 x 4.7 x 11.7 mm.

Fixed Inductors Feature Summary

• Dual-winding structure optimized for Trans-Inductor Voltage Regulator (TLVR) applications
• Shielded design to minimize electromagnetic radiation
• High current capability suitable for demanding power delivery networks
• Wide operating temperature range ensuring reliability in harsh environments

Fixed Inductors Applications

• Server and workstation power supplies
• Data center networking equipment
• CPU, GPU, and TPU point-of-load (POL) regulation
• Voltage regulator modules (VRM)
• Multiphase buck converters

Fixed Inductors Procurement Notes

Verify the specific suffix against the manufacturer's datasheet to confirm exact electrical parameters such as saturation current and tolerance. Ensure the ordering code matches the required inductance value and physical dimensions for your PCB layout. Confirm compliance with RoHS standards if required by your manufacturing process.

Fixed Inductors Selection Notes

Select this component for applications requiring low inductance and high current handling in compact form factors. The dual-winding architecture is specifically intended for TLVR topologies to improve transient response. Ensure the thermal management system can handle the heat dissipation associated with high RMS currents.

Fixed Inductors Part Context

This part belongs to the TLVR1005T/TLVR1105T series, which introduces Bourns' magnetic products for advanced voltage regulation. These inductors are engineered to support the increasing power demands of modern computing processors, offering higher reliability compared to standard single-winding inductors in similar packages.

Fixed Inductors Replacement Considerations

Direct replacements must match the 150 nH inductance, 75 A Irms rating, and 9.7 x 4.7 x 11.7 mm footprint. Verify that any substitute also supports the TLVR dual-winding topology requirement. Check for equivalent saturation current ratings and DC resistance values to maintain circuit performance.
