TLW-120-06-G-S

Headers, Male Pins Overview

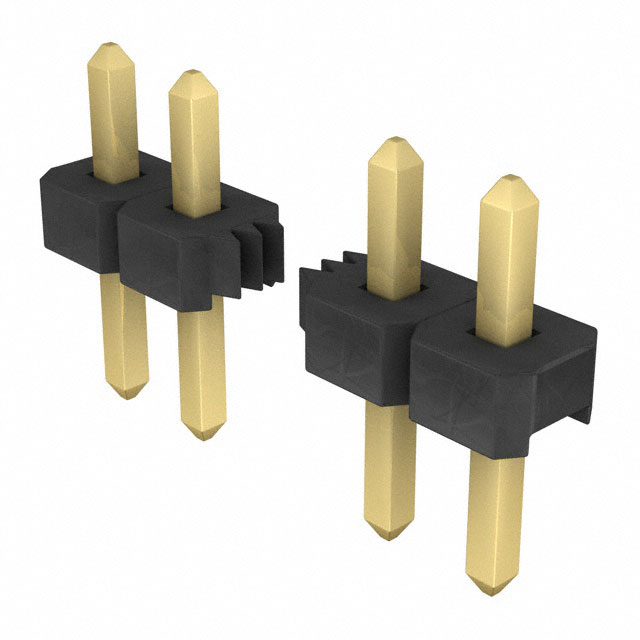

The TLW-120-06-G-S is a vertical pin header from the Samtec Flex Stack TLW series. It features a 2.54 mm (0.100 inch) pitch with 30 positions in a single row. The connector utilizes phosphor bronze contacts with gold plating for both mating and tail sections, ensuring reliable conductivity. Designed for through-hole termination, it offers a rated current of 5.2 A per contact. The housing is made of black liquid crystal polymer (LCP), supporting an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Single-row vertical pin header design for board-to-board or cable applications
• Gold-plated phosphor bronze contacts for enhanced corrosion resistance
• Thermal reflow compatible through-hole termination for secure PCB mounting
• High-temperature LCP insulation suitable for demanding environments

Headers, Male Pins Applications

• Board-to-board interconnections requiring low profile stacking
• Cable-to-board connections in compact electronic assemblies
• Industrial control systems operating within extended temperature ranges
• Consumer electronics utilizing standard 2.54 mm spacing requirements

Headers, Male Pins Procurement Notes

Verify that the specific part number TLW-120-06-G-S matches the required single-row configuration and gold plating specification. Confirm that the 30-position count aligns with the circuit design needs. Ensure compatibility with thermal reflow soldering processes. Check for RoHS compliance status if restricted substances are a concern for the target market.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch header is required with gold contact plating for superior signal integrity. The 30-position layout fits designs needing moderate density without excessive height. Consider the -55°C to 125°C operating range for environmental robustness. Ensure the through-hole footprint matches the PCB layout constraints for proper mechanical stability.

Headers, Male Pins Part Context

This part belongs to the TLW series of .100" low-profile terminal strips by Samtec. The series is characterized by its thin profile and square post contact system, designed to minimize board space while maintaining electrical performance. It serves as a versatile solution for various interconnect needs where standard spacing is utilized but space efficiency is prioritized.

Headers, Male Pins Replacement Considerations

Direct substitutes include other TLW series headers with identical pitch and position counts, such as TLW-130-06-G-S for different row configurations. Verify that any replacement maintains the same gold plating thickness and LCP material properties to ensure equivalent thermal and electrical characteristics.
