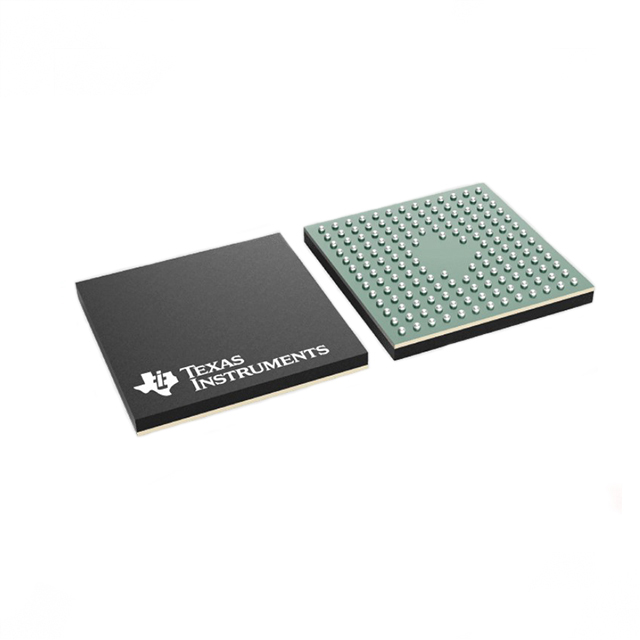

TM4C123GH6NMRIR is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC MCU 32BIT 256KB FLASH 157BGA. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for TM4C123GH6NMRIR
- Description：IC MCU 32BIT 256KB FLASH 157BGA
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT)
- Core Processor：ARM® Cortex®-M4F
- Core Size：32-Bit
- Speed：80MHz
- Connectivity：CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG
- Peripherals：Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT
- Number of I/O：120
- Program Memory Size：256KB (256K x 8)
- Program Memory Type：FLASH
- EEPROM Size：2K x 8
- RAM Size：32K x 8
- Voltage - Supply (Vcc/Vdd)：3.15V ~ 3.63V
- Data Converters：A/D 24x12b SAR
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：157-BGA Microstar Junior (9x9)
- Package / Case：157-VFBGA
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for TM4C123GH6NMRIR
Microcontrollers Overview
The TM4C123GH6NMRIR is a Tiva C Series microcontroller featuring an ARM Cortex-M4F processor core with a maximum clock frequency of 80 MHz. It includes 256 kB of flash program memory, 32 kB of SRAM, and 2 kB of EEPROM. The device provides up to 120 general-purpose I/Os and integrates two 12-bit ADCs with 24 analog input channels. Communication interfaces include CAN, USB, UART, SSI, and I2C modules. It operates within a voltage range of 3.15 V to 3.63 V and supports temperatures from -40°C to +85°C.
Microcontrollers Feature Summary
- Integrated floating-point unit (FPU) for IEEE754 compliant single-precision calculations
- Supports advanced motion control with PWM generators and quadrature encoder interfaces
- Includes dedicated hardware for real-time clock and hibernation modes
Microcontrollers Applications
- Industrial remote monitoring systems
- Electronic point-of-sale (POS) machines
- Factory automation controllers
- HVAC and building management systems
Microcontrollers Procurement Notes
Verify the specific suffix 'R' indicates tape and reel packaging configuration. Confirm the operating temperature grade matches application requirements. Ensure ESD handling procedures are followed during assembly due to moisture sensitivity classification.
Microcontrollers Selection Notes
Select this variant when high-performance processing with floating-point capabilities is required alongside extensive connectivity options. Consider the package type and pin count relative to board space constraints. Evaluate peripheral availability against system interface needs.
Microcontrollers Part Context
This component belongs to the Texas Instruments Tiva C Series, designed for high-performance embedded applications. It utilizes the ARM Cortex-M4 architecture to deliver efficient code execution and robust peripheral integration suitable for complex control tasks.
Microcontrollers Replacement Considerations
Consult official documentation for cross-referencing compatible devices within the same family or series that offer equivalent pinouts and feature sets.
