TMBYV10-60FILM

Single Diodes Overview

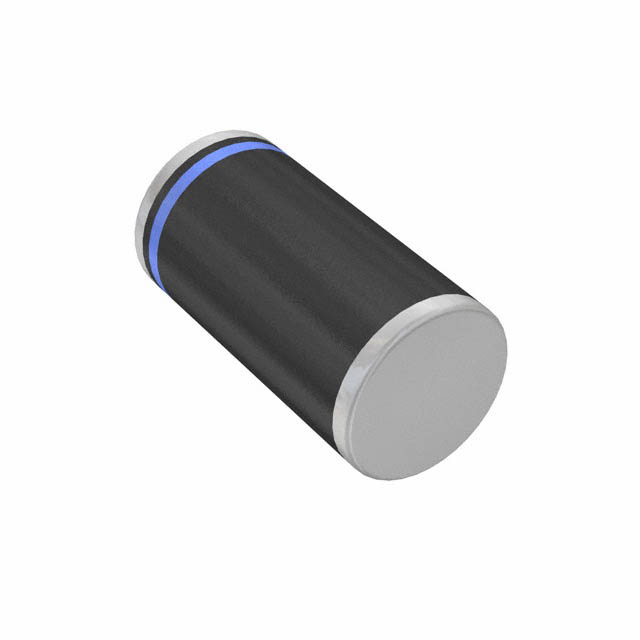

The TMBYV10-60FILM is a single Schottky barrier rectifier diode manufactured by STMicroelectronics. It features a maximum repetitive peak reverse voltage of 60 V and an average forward rectified current of 1 A. The device exhibits a typical forward voltage drop of 700 mV at rated current and can withstand a non-repetitive peak forward surge current of 20 A. It is housed in a 2-pin MELF (Metal Electrode Leadless Face) glass-encapsulated package designed for surface-mount technology. The component operates within a junction temperature range up to 125 °C, offering low leakage current and fast switching characteristics suitable for high-frequency applications.

Single Diodes Feature Summary

• Low forward voltage drop for improved efficiency
• Fast recovery time for high-speed switching
• Glass-encapsulated MELF package for robustness

Single Diodes Applications

• Low voltage switching mode power supplies
• DC-DC converters
• Free-wheeling diodes in inductive load circuits

Single Diodes Procurement Notes

Verify the complete part number including the FILM suffix to ensure correct packaging configuration. Confirm that the required voltage and current ratings align with the specific circuit design parameters. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure storage conditions respect the maximum junction temperature limits specified in the official datasheet.

Single Diodes Selection Notes

Select this component when a compact surface-mount Schottky diode is required for low-voltage, high-efficiency rectification. The MELF package offers superior mechanical stability compared to standard SMD packages. Consider the 60 V rating as the absolute maximum limit for reverse bias applications. Evaluate thermal management requirements based on the 1 A continuous current capability and package thermal resistance.

Single Diodes Part Context

This component belongs to STMicroelectronics' line of small signal Schottky diodes. It utilizes silicon carbide or similar advanced semiconductor technology to achieve low forward voltage. The MELF format provides hermetic sealing properties often associated with through-hole components but enables automated surface-mount assembly. It serves as a direct replacement for legacy axial leaded diodes in space-constrained designs.

Single Diodes Replacement Considerations

Direct substitutes must match the 60 V reverse voltage, 1 A forward current, and MELF package outline. Verify pin compatibility and thermal characteristics before substitution. Generic equivalents may differ in forward voltage drop or recovery time, potentially affecting circuit performance.
