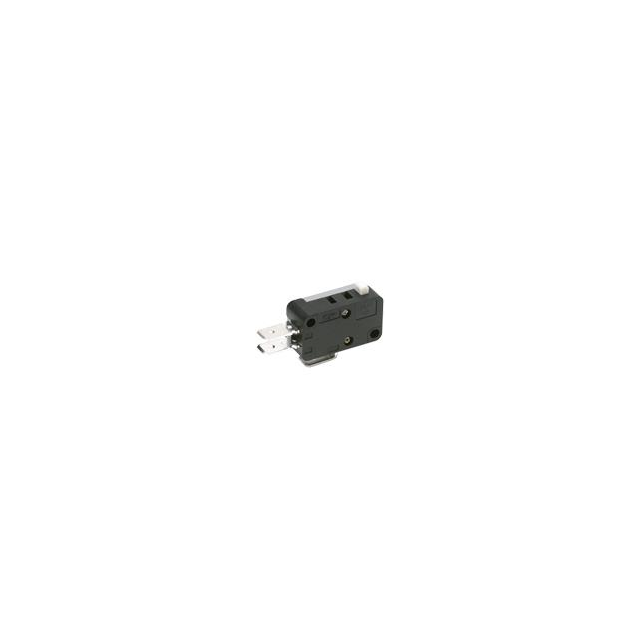

TMCJH3SP0040W is listed in the Limit Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH SNAP ACT SPST-NC 5A 250V. Review the specifications below when checking this part for your BOM.
Limit Switches specifications for TMCJH3SP0040W
- Description：SWITCH SNAP ACT SPST-NC 5A 250V
- Series：TM
- Mfr：C&K
- Package：Bulk
- Circuit：SPST-NC
- Switch Function：On-Mom
- Current Rating (Amps)：5A (AC)
- Voltage Rating - AC：250 V
- Actuator Type：Round (Pin Plunger)
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect - 0.187" (4.7mm)
- Ingress Protection：-
- Features：-
- Operating Force：150gf
- Release Force：60gf
- Operating Position：0.579" (14.7mm)
- Pretravel：0.055" (1.4mm)
- Differential Travel：0.013" (0.33mm)
- Overtravel：0.035" (0.9mm)
- Operating Temperature：-55°C ~ 150°C
- Voltage Rating - DC：-
Limit Switches datasheet and documents for TMCJH3SP0040W
