TMM-101-03-S-D

$0.50

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:937f73b44376 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TMM-101-03-S-D is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2MM TERMINAL STRIP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TMM-101-03-S-D

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：-
Number of Positions：2
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.106" (2.69mm)
Overall Contact Length：0.323" (8.20mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3.2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for TMM-101-03-S-D

TMM-101-03-S-D

Headers, Male Pins Overview

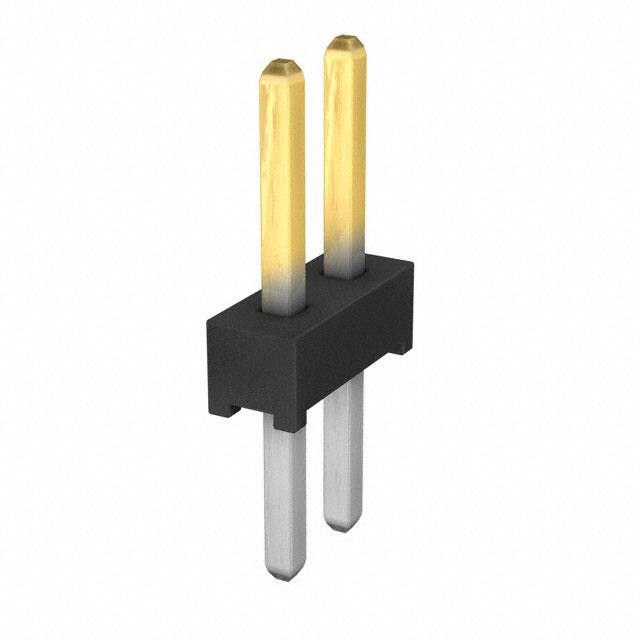

The TMM-101-03-S-D is a low-profile Tiger Eye header strip manufactured by Samtec Inc. It features a 2mm (0.079 inch) pitch and consists of 2 positions arranged in a dual-row configuration. The connector utilizes phosphor bronze contacts with gold plating on the mating interface, ensuring reliable signal transmission. Designed for through-hole mounting, it supports board-to-board or cable applications. The housing is constructed from black liquid crystal polymer (LCP), providing thermal stability within an operating temperature range of -55°C to 125°C. Each contact is rated for 3.2A current.

Headers, Male Pins Feature Summary

Low-profile design facilitates compact board stacking
Gold-plated contacts ensure corrosion resistance
Push-pull locking mechanism secures mating

Headers, Male Pins Applications

Board-to-board interconnects
Cable connections
High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and termination style. Ensure the selected variant matches the required row count and position quantity for the target PCB footprint. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference the datasheet for precise mechanical dimensions before integration.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability connection is required for dense layouts. The dual-row format maximizes I/O density within a minimal vertical space constraint. Gold plating is suitable for environments requiring long-term corrosion protection. Verify that the through-hole termination method aligns with the manufacturing process capabilities.

Headers, Male Pins Part Context

This part belongs to the TMM series of low-profile Tiger Eye headers. The series offers various configurations including single and double rows with different pitch options. The TMM-101 base indicates a 2mm pitch family member designed for general-purpose interconnect needs in consumer and industrial electronics.
