TMM-102-01-F-D

Headers, Male Pins Overview

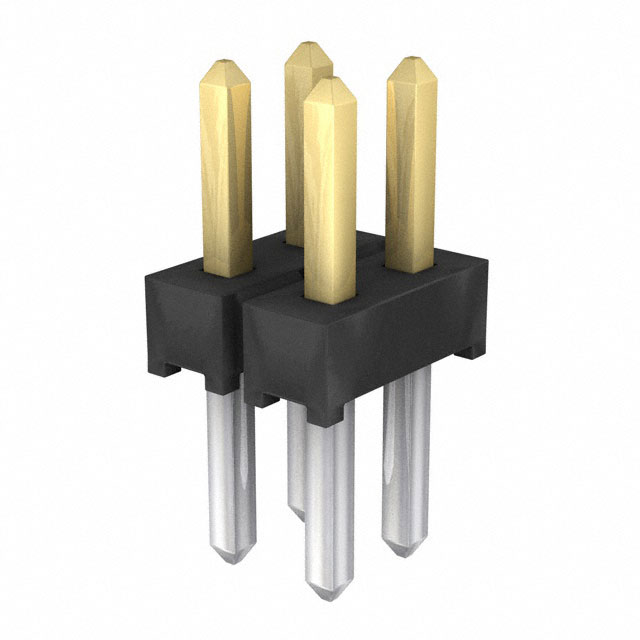

The TMM-102-01-F-D is a Low Profile Tiger Eye Header Strip manufactured by Samtec. It features a 2 mm (0.079 in) pitch with 4 positions arranged in a dual row configuration. Designed for surface mount (SMD/SMT) installation, the connector utilizes straight pin male contacts with gold plating over phosphor bronze. The housing is constructed from black liquid crystal polymer (LCP), rated UL 94 V-0. Electrical ratings include 3.2 A current and 250 VAC voltage. The operating temperature range spans from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Low profile design optimized for space-constrained board-to-board applications
• Surface mount termination style ensures secure PCB attachment
• Gold-plated phosphor bronze contacts provide reliable conductivity

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact physical dimensions and termination styles. Ensure compatibility with mating socket strips within the same series. Confirm RoHS compliance status and material specifications match project requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header is required for compact designs. The dual-row layout supports higher pin counts in limited vertical space. Verify that the mating connector matches the 2 mm pitch and contact geometry. Consider thermal management capabilities given the specified operating temperature range.

Headers, Male Pins Part Context

This part belongs to the TMM series of Low Profile Tiger Eye Header Strips. The series offers various configurations including shrouded and unshrouded options. It is designed for high-reliability interconnects in consumer electronics and industrial equipment where space efficiency is critical.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Samtec TMM variants with matching pitch and position counts. Cross-reference mechanical drawings for compatible mating connectors. Verify electrical ratings and temperature limits before substituting.
