TMM-102-02-SM-S

Headers, Male Pins Overview

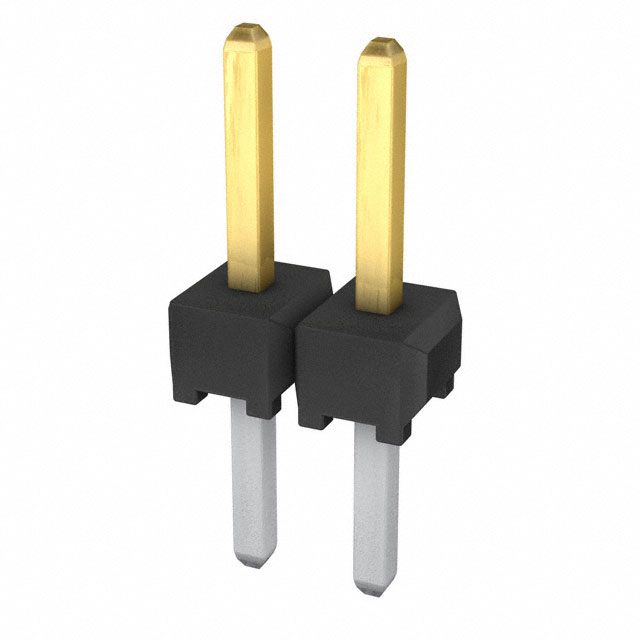

The Samtec TMM-102-02-SM-S is a Low Profile Tiger Eye Header Strip featuring a 2 mm pitch and two positions in a single row. Designed for through-hole mounting with a straight orientation, it utilizes male pin contacts made of phosphor bronze with gold plating. The housing is constructed from black liquid crystal polymer (LCP) rated UL 94 V-0. It supports board-to-board and cable connections within an operating temperature range of -55°C to +125°C, carrying a current rating of 3.2 A and voltage ratings of 250 VAC and 281 VAC.

Headers, Male Pins Feature Summary

• Low profile design optimized for space-constrained applications
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• UL 94 V-0 rated LCP insulation provides thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official documentation to confirm contact plating and termination style. Ensure compatibility with mating socket strips regarding height and pitch. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into the manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for 2 mm pitch systems. Consider the gold plating for corrosion resistance and the LCP material for high-temperature performance. Verify that the through-hole termination method aligns with the PCB fabrication capabilities and assembly workflow.

Headers, Male Pins Part Context

This part belongs to the TMM series of Low Profile Tiger Eye Header Strips by Samtec. The series offers various configurations including different row counts, pitches, and termination styles. This specific model represents a compact, two-position solution suitable for dense circuit layouts requiring robust electrical connections.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include TMM-102-02-G-S and TMM-102-02-L-S, which share identical mechanical dimensions and pin counts but differ in contact plating specifications.
