TMM-103-03-TM-S

$0.32

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:587116a076f6 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TMM-103-03-TM-S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2MM TERMINAL STRIP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TMM-103-03-TM-S

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.106" (2.69mm)
Overall Contact Length：0.323" (8.20mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3.2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for TMM-103-03-TM-S

TMM-103-03-TM-S

Headers, Male Pins Overview

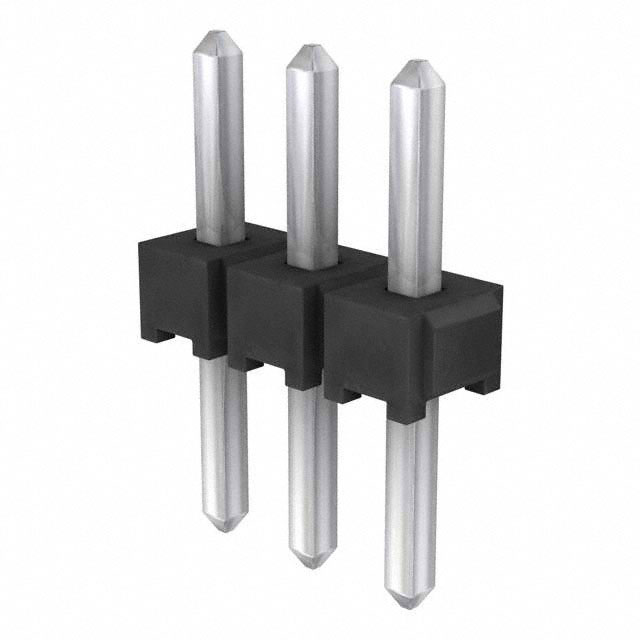

The TMM-103-03-TM-S is a Low Profile Tiger Eye™ Header Strip manufactured by Samtec Inc. It features a 2 mm (0.079 in) pitch with 3 positions arranged in a single row. Designed for through-hole installation, it utilizes solder pin termination with male pin contacts. The connector has a phosphor bronze contact material with gold plating and a black liquid crystal polymer (LCP) housing. It supports a current rating of 3.2 A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

Low profile design suitable for space-constrained applications
Tiger Eye™ header strip configuration for reliable mating
Gold-plated phosphor bronze contacts for conductivity

Headers, Male Pins Applications

High-power motor control cabinets
Board-to-board interconnections
Cable-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix TM-S against official Samtec documentation to confirm the exact termination style and plating specifications. Ensure compatibility with the target PCB hole size and assembly process requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for through-hole mounting. Consider the 2 mm pitch and 3-position count to match the circuit layout. Verify that the 3.2 A current rating and LCP insulation material meet the environmental and electrical demands of the application.

Headers, Male Pins Part Context

This part belongs to the TMM series of Low Profile Tiger Eye™ Header Strips. The series offers various configurations for both through-hole and surface mount terminations, providing flexible interconnection solutions for dense electronic assemblies.
