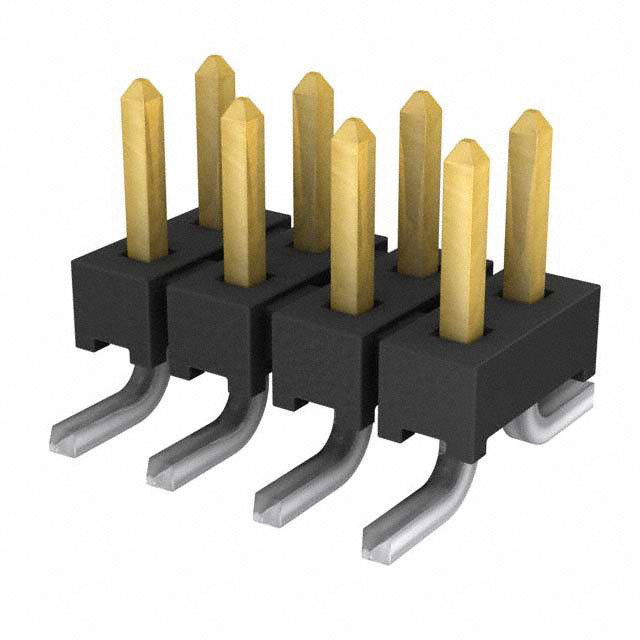

TMM-104-06-F-D-SM-P

Headers, Male Pins Overview

The TMM-104-06-F-D-SM-P is a low profile header strip manufactured by Samtec Inc. It features a 2.00 mm (.079 inch) pitch and provides 8 positions arranged in a dual row configuration. The component utilizes surface mount termination with a PnP pad design for automated assembly compatibility. Contact plating consists of 30 microinches of gold over tin to ensure reliable signal transmission. The connector supports vertical orientation and includes an omitted pin at position 6, offering specific layout flexibility for board-to-board or cable connections.

Headers, Male Pins Feature Summary

• Low profile design with 2.00 mm pitch for space-constrained applications
• Surface mount termination optimized for pick-and-place automation
• Gold/tin contact plating for enhanced corrosion resistance and conductivity
• Flexible FleXYZ™ design capability allowing multi-axis alignment

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic modules
• Cable-to-board connections requiring low profile headers
• High-density digital signal routing in consumer electronics
• Industrial control systems with limited vertical clearance

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Samtec datasheet to confirm terminal type, plating thickness, and tape/reel packaging requirements. Ensure the selected variant matches the required current rating and voltage specifications for the target application. Cross-reference the part number with the latest series print to confirm dimensional tolerances and mating partner compatibility before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low profile, surface mount header with a 2.00 mm pitch is required. The dual row configuration provides higher density compared to single row options. Consider the surface mount termination for automated assembly processes. Verify that the 30 microinch gold plating meets the environmental and durability requirements of the end-use product. Confirm the omitted pin location aligns with the circuit design constraints.

Headers, Male Pins Part Context

This part belongs to the TMM (Tiger Eye Male) series from Samtec, which offers extensive design flexibility through various configurations up to four rows wide. The series supports both through-hole and surface mount terminations, providing designers with versatile options for different PCB assembly techniques and mechanical stability requirements.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include TMM-104-06-L-D-SM-P-TR and TMM-104-06-F-D-SM-M-TR. Verify that alternative parts maintain identical pitch, row count, and termination style. Confirm that any substitute matches the specific contact plating and pin omission requirements of the original design.
