TMM-108-01-L-D

Headers, Male Pins Overview

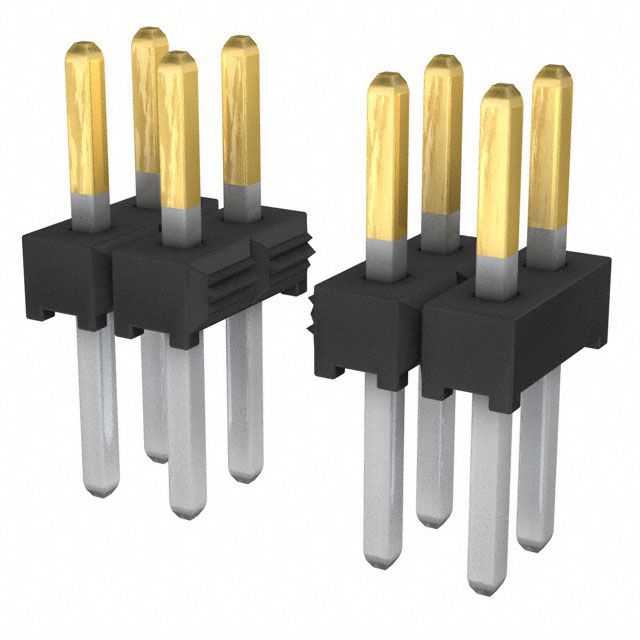

Samtec TMM-108-01-L-D is a Low Profile Tiger Eye Header Strip featuring a 2.00 mm (0.079 inch) pitch and 16 positions arranged in a dual-row configuration. Designed for surface mount installation, it utilizes phosphor bronze contacts with gold plating for reliable signal transmission. The connector supports a rated current of 3.2 A per contact and operates within a temperature range of -55°C to +125°C. Constructed with liquid crystal polymer insulation rated UL 94 V-0, the black housing ensures durability in board-to-board or cable applications.

Headers, Male Pins Feature Summary

• Low profile design optimized for space-constrained electronic assemblies
• Push-pull fastening mechanism provides secure mating retention
• Gold-plated square pins ensure stable electrical connectivity
• LCP insulation material offers high thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-density electronic modules
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required termination style, as the base model typically denotes through-hole variants while SM indicates surface mount. Confirm pin count and row configuration align with PCB footprint requirements. Ensure compatibility with mating receptacles regarding contact length and insulation height specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile header with push-pull locking is required for dense layouts. The dual-row format accommodates higher I/O counts within limited vertical space. Verify that the operating temperature range meets environmental demands and that the current rating suffices for the application load without derating concerns.

Headers, Male Pins Part Context

The TMM series represents Samtec's Low Profile Tiger Eye Headers, engineered for compact designs. This specific part belongs to the standard 2.00 mm pitch family, offering a balance between density and mechanical robustness. It serves as a foundational interconnect solution for modern electronics requiring reliable signal integrity in restricted form factors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TMM headers with identical pitch and position counts. Cross-reference mating receptacles to ensure compatible contact lengths. Verify that alternative vendors' equivalents match the critical dimensions of insulation height and overall contact length for proper assembly fit.
