TMM-110-01-T-D-SM-020

Headers, Male Pins Overview

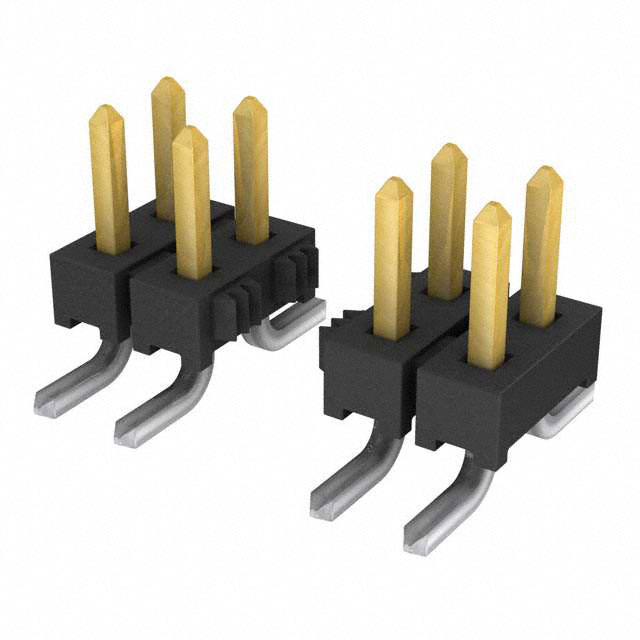

The TMM-110-01-T-D-SM-020 is a low-profile header strip manufactured by Samtec Inc. It features a 2.00 mm pitch and a 2x10 position configuration, totaling 20 contacts. The connector utilizes surface mount termination with tin-plated phosphor bronze pins. Constructed from black liquid crystal polymer (LCP), it offers an insulation height of 1.50 mm and operates within a temperature range of -55°C to +105°C. The mating contact length is specified at 3.20 mm, supporting a current rating of 3.2 A per contact.

Headers, Male Pins Feature Summary

• Low-profile design suitable for space-constrained applications
• Push-pull locking mechanism for secure board-to-board connection
• Tin-plated phosphor bronze contacts ensure reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official documentation to confirm exact lead times and packaging configurations. Ensure compatibility with mating connectors regarding pin length and insulation height. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header with a push-pull lock is required. The 2.00 mm pitch accommodates high-density layouts. Verify that the mating connector matches the 3.20 mm mating contact length specification. Consider the thermal operating range and UL94 V-0 flammability rating for environmental suitability.

Headers, Male Pins Part Context

This part belongs to the TMM series of low-profile Tiger Eye headers. It shares mechanical and electrical characteristics with other variants in the family, differing primarily in position count, termination style, and mounting orientation. The SM suffix indicates surface mount termination, while the D denotes a dual row configuration.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TMM-110-01-T-D-SM and TMM-110-01-F-D-SM. Verify that alternative parts match the 2.00 mm pitch, 20-position count, and surface mount termination type. Ensure the locking mechanism and insulation material are compatible with existing assembly processes.
