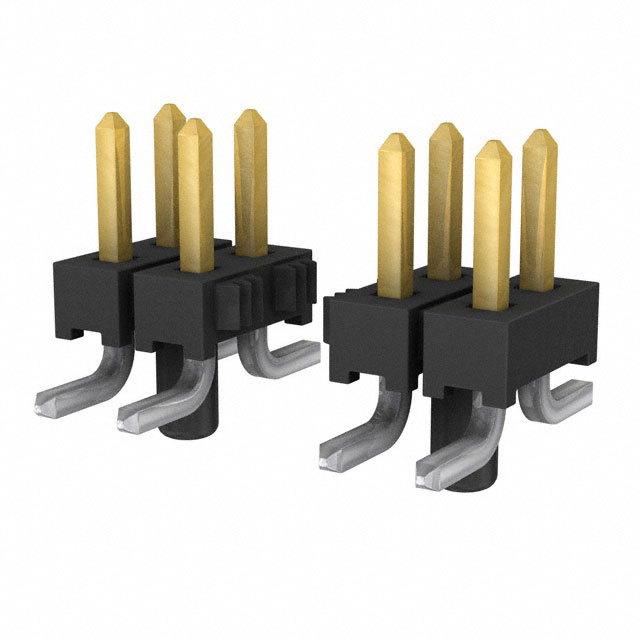

TMM-111-06-F-D-SM-A

$2.71

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk

SKU:9289c03dd404 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TMM-111-06-F-D-SM-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2MM TERMINAL STRIP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TMM-111-06-F-D-SM-A

Description：2MM TERMINAL STRIP
Series：TMM
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：22
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.168" (4.27mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for TMM-111-06-F-D-SM-A

TMM-111-06-F-D-SM-A

Headers, Male Pins Overview

The TMM-111-06-F-D-SM-A is a board connector from the Samtec TMM series, featuring 22 contacts arranged in two rows. It utilizes a 2.00 mm (0.079 inch) pitch and employs surface mount terminals for PCB attachment. The connector is designed with male square pin sockets and includes polarized keying options. Constructed with phosphor bronze contacts and liquid crystal polymer insulation, it supports a rated current of 3.2 A per contact.

Headers, Male Pins Feature Summary

Features a low-profile design with a 1.50 mm insulator height for compact board-to-board applications.
Incorporates a push-pull locking mechanism to ensure secure mating engagement between boards.
Offers flexible polarization configurations to prevent misalignment during assembly.

Headers, Male Pins Applications

Board-to-board interconnects in telecommunications equipment
High-density connections in industrial control systems
Signal routing in consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffixes match the required polarization and termination style. Confirm RoHS compliance status and moisture sensitivity level requirements against project specifications. Ensure the selected variant aligns with the intended surface mount process parameters.

Headers, Male Pins Selection Notes

Select this component when a 2.00 mm pitch surface mount header is required. Consider the TMM series for its robust push-pull retention and low profile. Evaluate contact count and polarization needs to determine the correct part number within the family.

Headers, Male Pins Part Context

This part belongs to the TMM Tiger Eye™ series, known for rugged performance and reliable signal integrity. The series provides versatile solutions for high-density interconnects. The TMM-111 designation indicates a specific contact configuration within the broader product line.
