TMM-113-05-S-D-SM-TR

Headers, Male Pins Overview

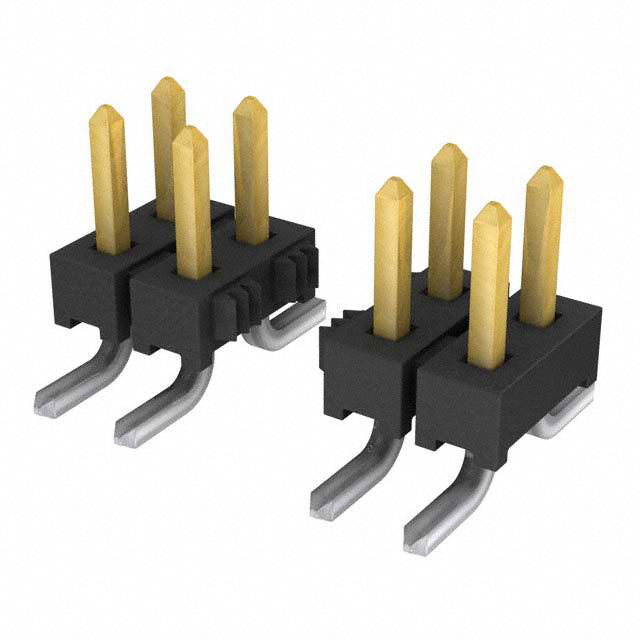

The TMM-113-05-S-D-SM-TR is a low-profile terminal strip manufactured by Samtec Inc. It features a 2-row, 26-position male header configuration with a 2.00mm (0.079 inch) pitch. Designed for surface mount installation, the connector utilizes phosphor bronze contacts with gold plating over nickel for mating surfaces and tin termination finishes. The housing is constructed from black liquid crystal polymer (LCP), ensuring UL 94 V-0 flammability ratings. This component supports operating temperatures ranging from -55°C to +125°C and includes polarized design features to ensure correct orientation during assembly.

Headers, Male Pins Feature Summary

• Low-profile surface mount terminal strip designed for compact board-to-board connections
• Polarized housing structure prevents incorrect insertion during assembly
• Gold-plated contact surfaces provide reliable electrical conductivity and corrosion resistance
• Liquid crystal polymer insulation offers high thermal stability and flame retardancy

Headers, Male Pins Applications

• Board-to-board interconnections in space-constrained electronic assemblies
• Surface mount integration in industrial control modules
• Signal routing in telecommunications equipment
• Connection interfaces in automotive electronics systems

Headers, Male Pins Procurement Notes

Verify that the specific part number suffix matches the required reel quantity and tape specifications for automated pick-and-place processes. Confirm RoHS compliance status aligns with current regional environmental regulations. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering. Cross-reference pin count and row configuration against schematic requirements to prevent mismatched connector selections.

Headers, Male Pins Selection Notes

Select this component when a 26-position, 2-row male header with 2.00mm pitch is required for surface mount applications. Consider the low-profile form factor if vertical clearance is limited. Verify that the phosphor bronze material and gold plating meet the electrical performance needs of the signal lines. Ensure the operating temperature range covers the intended environmental conditions of the final product.

Headers, Male Pins Part Context

This component belongs to the TMM series of terminal strips from Samtec Inc., which are characterized by their low profile and robust construction. The series offers various configurations including different pin counts, contact materials, and mounting styles. The TMM-113-05-S-D-SM-TR specifically represents a standard surface mount variant within this family, designed for general-purpose interconnect applications requiring reliable performance in compact spaces.

Headers, Male Pins Replacement Considerations

TMM-113-05-S-D-SM-TR
