TMM-117-03-L-S

Headers, Male Pins Overview

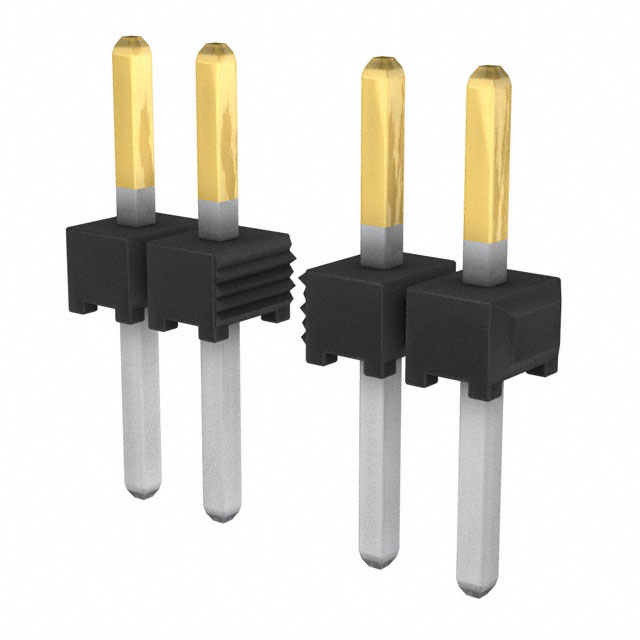

The TMM-117-03-L-S is a low-profile Tiger Eye header strip manufactured by Samtec. It features a 2 mm (0.079 in) pitch and contains 17 positions arranged in a single row. The connector utilizes through-hole mounting with straight solder pin termination. Contacts are made of phosphor bronze with gold plating, offering a mating length of 4 mm (0.157 in) and a tail length of 2.7 mm (0.106 in). The housing is constructed from black liquid crystal polymer (LCP), rated for operation between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Low-profile design utilizing the Tiger Eye contact system for reliable board-to-board interconnection.
• Single-row configuration with 2 mm pitch suitable for space-constrained applications.
• Through-hole solder termination ensures secure mechanical attachment to the PCB.

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Industrial control systems
• Motor control cabinets

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Samtec documentation to confirm exact contact plating thickness and material specifications. Ensure the selected variant matches the required current rating and thermal performance for the target application environment. Cross-reference the Mouser number 200-TMM11703LS for accurate distributor identification.

Headers, Male Pins Selection Notes

Select this component when a single-row, low-profile header with through-hole termination is required. The 2 mm pitch allows for higher density compared to standard 2.54 mm headers. Verify that the 4 mm mating length accommodates the target connector height and that the LCP insulation material meets the thermal requirements of the assembly process.

Headers, Male Pins Part Context

This part belongs to the TMM series of low-profile terminal strips. The series is characterized by its rugged construction and flexible contact design, which provides enhanced reliability during insertion and removal cycles. The TMM line is widely used in industrial and commercial electronics requiring robust board-to-board connections.

Headers, Male Pins Replacement Considerations

Compatible mating connectors include the SQW series. For direct replacement, verify that the substitute part maintains the same 2 mm pitch, single-row configuration, and through-hole termination style to ensure mechanical and electrical compatibility.
