TMMH-105-05-T-D

Headers, Male Pins Overview

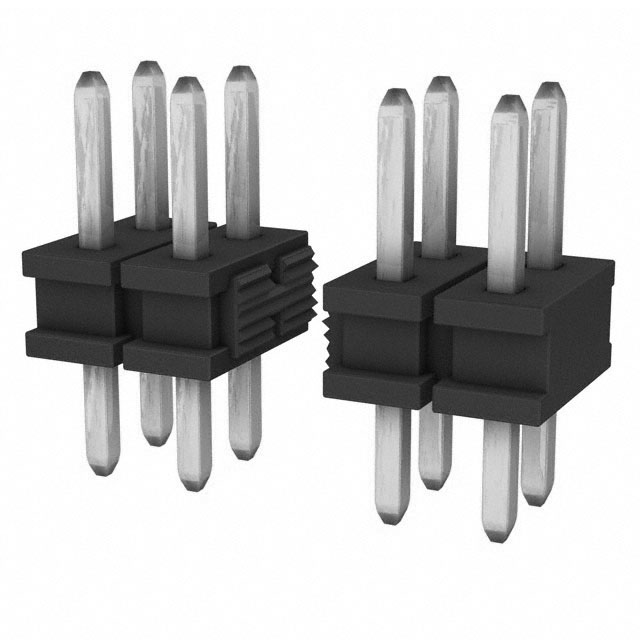

The TMMH-105-05-T-D is a low profile header strip manufactured by Samtec. It features a 2 mm (0.079 in) pitch and consists of 10 positions arranged in a 2-row configuration. The connector utilizes through-hole mounting with straight solder pin termination. Contact material is phosphor bronze with tin plating. The housing is constructed from black liquid crystal polymer (LCP). Electrical ratings include a current capacity of 4.5 A to 5.1 A and voltage ratings of 250 VAC and 281 VAC. Operating temperature range spans from -55°C to +105°C, with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Low profile design with end shroud for board-to-board or cable applications
• Through-hole straight mount with tin-plated phosphor bronze contacts
• Liquid crystal polymer insulation offering high thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies requiring low profile headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm exact contact plating, termination style, and packaging type. Ensure the selected variant matches the required mechanical height and electrical ratings for the target application environment. Cross-reference the part number with the latest datasheet to confirm availability and compliance status.

Headers, Male Pins Selection Notes

Select this component when a low profile, double-row header with through-hole termination is required. The 2 mm pitch accommodates standard board spacing while maintaining a compact form factor. Tin plating provides cost-effective conductivity suitable for general applications. Verify that the operating temperature range and current ratings meet system requirements before integration.

Headers, Male Pins Part Context

This part belongs to the TMMH series of low profile header strips. The series offers various configurations including surface mount and right-angle options. The TMMH-105-05-T-D specifically denotes a 10-position, 2-row through-hole variant with tin contacts. It is designed for reliable interconnection in space-constrained electronic designs.

Headers, Male Pins Replacement Considerations

Consult Samtec's official substitution guide for compatible alternatives within the TMMH family. Verify mechanical dimensions and electrical specifications match before replacing.
