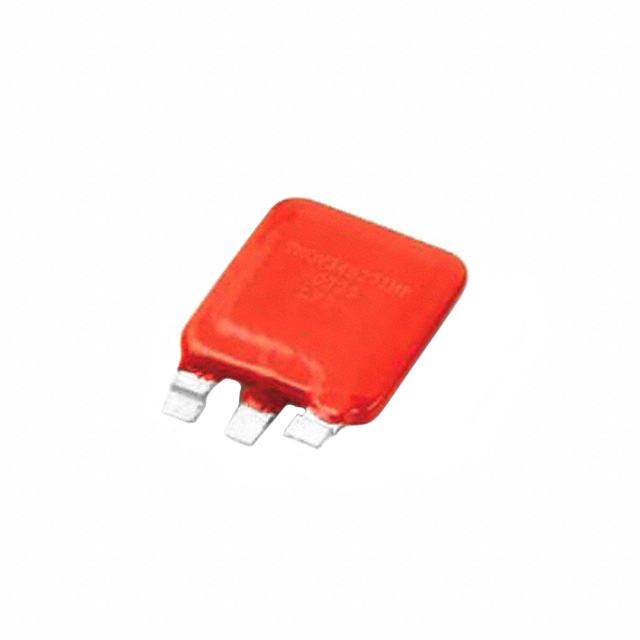

TMOV34S141MPX2696

TMOV34S141MPX2696 is listed in the Varistors, MOVs range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is VARISTOR 220V 40KA SQUARE 34MM. Review the specifications below when checking this part for your BOM.

Varistors, MOVs specifications for TMOV34S141MPX2696

• Description：VARISTOR 220V 40KA SQUARE 34MM
• Series：TMOV® 34S
• Mfr：Littelfuse Inc.
• Package：Bulk
• Maximum AC Volts：140 V
• Maximum DC Volts：188 V
• Varistor Voltage (Min)：198 V
• Varistor Voltage (Typ)：220 V
• Varistor Voltage (Max)：242 V
• Current - Surge：40 kA
• Energy：340J
• Number of Circuits：1
• Capacitance @ Frequency：9000 pF @ 1 MHz
• Operating Temperature：-55°C ~ 85°C (TA)
• Mounting Type：Through Hole
• Package / Case：Square 34mm, Formed Tabs, 3-Lead
• Grade：-
• Qualification：-
• Features：Thermally Protected

Varistors, MOVs datasheet and documents for TMOV34S141MPX2696
