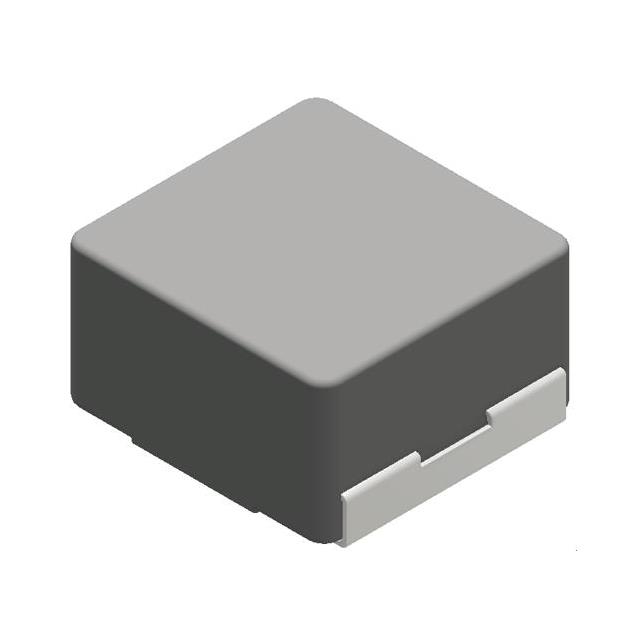

TMPA606010AF-6R8MN-D is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TAI-TECH Advanced Electronics Co., Ltd.. Its product description is 6.8UH SHIELDED MOLDED INDUCTOR S. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for TMPA606010AF-6R8MN-D
- Description：6.8UH SHIELDED MOLDED INDUCTOR S
- Series：TMPA606010SP-D
- Mfr：TAI-TECH Advanced Electronics Co., Ltd.
- Package：Tape & Reel (TR)
- Type：Molded
- Material - Core：Metal
- Inductance：6.8 µH
- Tolerance：±20%
- Current Rating (Amps)：2.1 A
- Current - Saturation (Isat)：2.5A
- Shielding：Shielded
- DC Resistance (DCR)：15mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.240" L x 0.240" W (6.10mm x 6.10mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Features：-
Fixed Inductors datasheet and documents for TMPA606010AF-6R8MN-D
Fixed Inductors Overview
The TMPA606010AF-6R8MN-D is a shielded molded inductor manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features an inductance of 6.8 µH with a tolerance of ±20%. The component has a current rating of 2.1 A and a saturation current (Isat) specification. Its maximum DC resistance is 50 mOhm. The physical dimensions are 6.10 mm x 6.10 mm, corresponding to the 6060 package style.
Fixed Inductors Feature Summary
- Shielded molded construction for electromagnetic interference suppression
- Non-standard form factor designed for specific mounting requirements
- High current handling capability relative to standard surface mount packages
Fixed Inductors Applications
- Power supply filtering circuits
- DC-DC converter input/output stages
- Signal processing applications requiring noise suppression
Fixed Inductors Procurement Notes
Verify the manufacturer part number against official TAI-TECH documentation to ensure authenticity. Confirm that the received components match the specified 6.8 µH inductance and 6060 package dimensions. Check for any ordering suffixes that may indicate variations in packaging or specifications not covered in standard datasheets.
Fixed Inductors Selection Notes
Select this component when a 6.8 µH inductance value is required with a 2.1 A current rating. Ensure the application can accommodate the 6060 footprint size. Consider the 50 mOhm DC resistance for efficiency calculations in power management designs.
Fixed Inductors Part Context
This inductor belongs to TAI-TECH's lineup of magnetic components, which includes EMI suppression filters and inductive coils. The company focuses on developing and manufacturing these components using automatic equipment to meet customer satisfaction standards established since its founding in 1975.
Fixed Inductors Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Verify compatibility with existing circuit designs before considering alternative components from other manufacturers.
