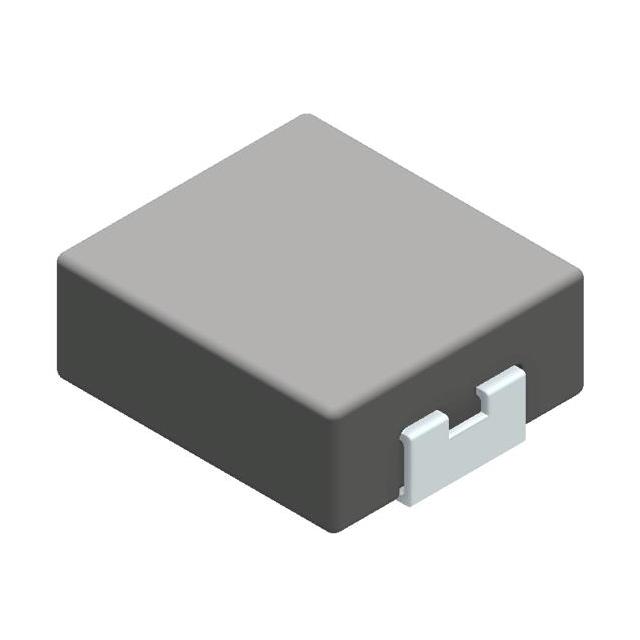

TMPC 1265HPV-1R0MG-D is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TAI-TECH Advanced Electronics Co., Ltd.. Its product description is 1.0 UH SHIELDED MOLDED INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for TMPC 1265HPV-1R0MG-D
- Description：1.0 UH SHIELDED MOLDED INDUCTOR
- Series：TMPC1265HPV
- Mfr：TAI-TECH Advanced Electronics Co., Ltd.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Carbonyl Powder
- Inductance：1 µH
- Tolerance：±20%
- Current Rating (Amps)：30 A
- Current - Saturation (Isat)：48A
- Shielding：Unshielded
- DC Resistance (DCR)：2.3mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.531" L x 0.492" W (13.50mm x 12.50mm)
- Height - Seated (Max)：0.256" (6.50mm)
- Features：-
Fixed Inductors datasheet and documents for TMPC 1265HPV-1R0MG-D
Fixed Inductors Overview
The TMPC 1265HPV-1R0MG-D is a surface-mount power inductor manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features an unshielded construction with a nominal inductance of 1 µH and a tolerance of ±20%. The component supports a maximum DC current of 30 A and exhibits a maximum DC resistance of 2.3 mΩ. It utilizes a nonstandard package configuration designed for high-current applications.
Fixed Inductors Feature Summary
- Unshielded magnetic structure to minimize core saturation effects under high load conditions
- High current handling capability suitable for demanding power supply circuits
- Low DC resistance design to reduce conduction losses and thermal generation
Fixed Inductors Applications
- High-current DC-DC converter modules
- Power management integrated circuit output filtering
- Server and workstation power distribution networks
Fixed Inductors Procurement Notes
Verify the specific electrical parameters against the official manufacturer datasheet prior to integration, as specifications may vary between production batches or regional revisions. Confirm that the unshielded topology aligns with the electromagnetic interference requirements of the target system design. Ensure mechanical compatibility with the intended footprint layout.
Fixed Inductors Selection Notes
Select this component when the application requires high current capacity exceeding standard shielded alternatives. The unshielded design offers distinct thermal and saturation characteristics compared to enclosed variants. Evaluate the trade-off between electromagnetic interference emissions and current handling performance. Validate that the nonstandard package dimensions fit within the available board space constraints.
Fixed Inductors Part Context
This part belongs to the TMPC series of surface-mount power inductors from TAI-TECH. The series focuses on high-performance magnetic components for modern electronic systems. The specific model designation indicates its inductance value and current rating profile within the manufacturer's portfolio of unshielded power solutions.
