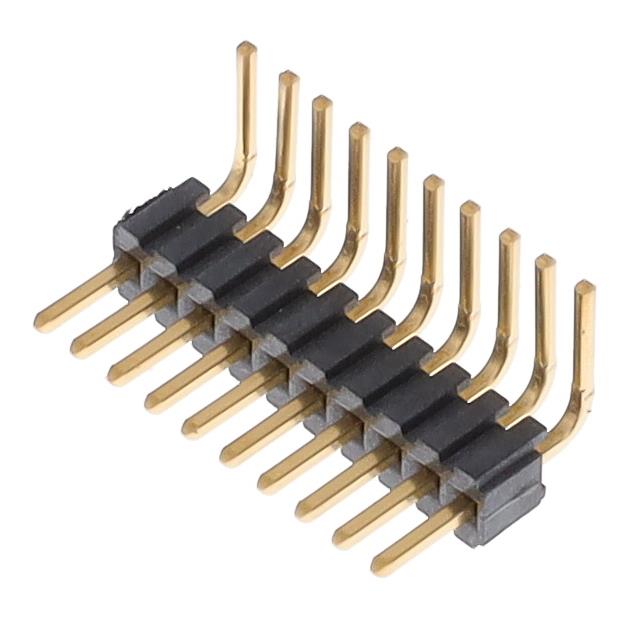

TMS-110-03-G-S-RA

TMS-110-03-G-S-RA is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is .050" (1.27MM) MICRO HEADER. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TMS-110-03-G-S-RA

• Description：.050" (1.27MM) MICRO HEADER
• Series：TMS
• Mfr：Samtec Inc.
• Package：Bulk,Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：10
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.125" (3.18mm)
• Contact Length - Post：0.140" (3.56mm)
• Overall Contact Length：-
• Insulation Height：0.098" (2.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：Gold
• Contact Material：Phosphor Bronze
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：5A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for TMS-110-03-G-S-RA
