TMS-133-02-G-D

Headers, Male Pins Overview

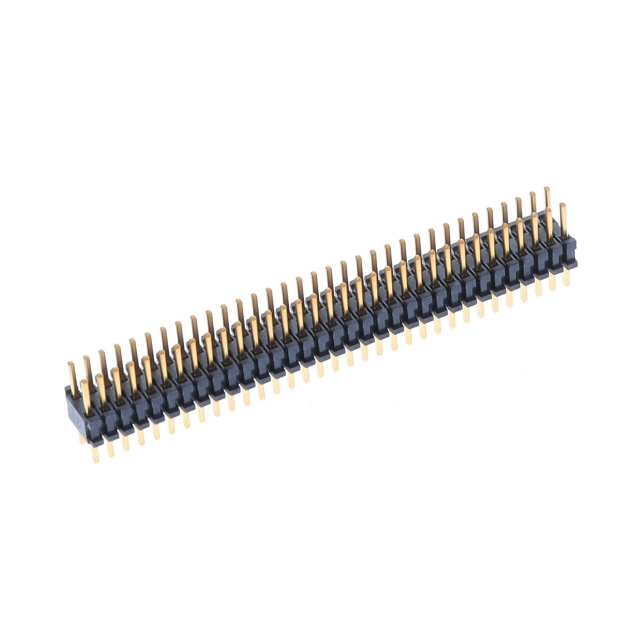

The TMS-133-02-G-D is a micro header strip manufactured by Samtec Inc., featuring a 2.54 mm (0.100 inch) pitch and 66 positions arranged in two rows. Designed for through-hole mounting, this component utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards. The connector supports board-to-board or cable applications, offering a robust solution for high-density interconnect requirements in electronic assemblies.

Headers, Male Pins Feature Summary

• Features a low-profile design suitable for space-constrained PCB layouts
• Utilizes Tiger Eye contact system for secure mating engagement
• Constructed with liquid crystal polymer insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assembly integration
• Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact pin count, termination style, and packaging configuration. Ensure compatibility with mating connectors regarding pitch and row alignment. Cross-reference environmental ratings such as operating temperature and flammability classifications with application requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch male header is required for through-hole implementation. Consider the 66-position capacity and dual-row arrangement for dense signal routing needs. Evaluate the mechanical constraints of the installation area against the connector's profile dimensions. Confirm that the gold-plated phosphor bronze contacts meet the electrical performance criteria for the intended current load and signal integrity.

Headers, Male Pins Part Context

This part belongs to the TMS series of micro headers from Samtec, characterized by their compact form factor and reliable through-hole termination. The series is engineered for applications demanding stable connections in moderate density environments. As a male header, it is designed to mate with corresponding female socket strips, providing a standardized interface for circuit board interconnection.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified equivalent part numbers. Verify dimensional compatibility and electrical specifications before considering alternative sources.
