TMUX1136DQAR

$2.19

Description：IC SWITCH SPDT X 2 4OHM 10USON
Series：-

SKU:ad01e815f7fd Category: Analog Switches, Multiplexers, Demultiplexers Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC SWITCH SPDT X 2 4OHM 10USON
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Circuit：SPDT
Multiplexer/Demultiplexer Circuit：2:01
On-State Resistance (Max)：4Ohm
Channel-to-Channel Matching (ΔRon)：130mOhm
Voltage - Supply, Single (V+)：1.08V ~ 5.5V
Voltage - Supply, Dual (V±)：-
Switch Time (Ton, Toff) (Max)：-
-3db Bandwidth：220MHz
Charge Injection：-6pC
Channel Capacitance (CS(off), CD(off))：6pF
Current - Leakage (IS(off)) (Max)：80pA
Crosstalk：-80dB @ 10MHz
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount

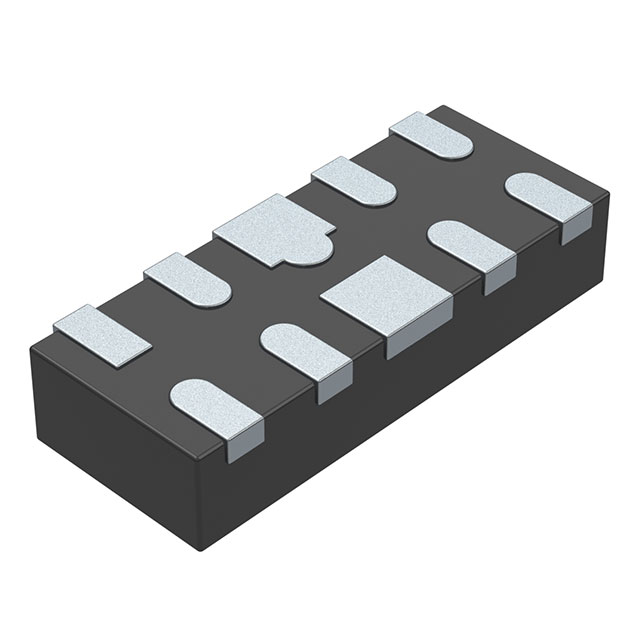

Package / Case：10-UFDFN
Supplier Device Package：10-USON (2.5x1)
Number of Circuits：2
Grade：-
Qualification：-

Download product information

TMUX1136DQAR

Overview

The TMUX1136DQAR is a precision analog switch manufactured by Texas Instruments, featuring two single-pole double-throw (SPDT) channels. It operates on a single supply voltage ranging from 1.08 V to 5.5 V. The device exhibits low on-state leakage current of 3 pA and an on-resistance of 4.9 Ohms maximum. It supports a DC switch current of 20 mA and draws a maximum supply current of 1 uA. The component functions within a temperature range of -40°C to +125°C and is housed in a 10-pin VQFN package.

Feature Summary

Ultra-low leakage current for high-impedance signal integrity
Precision switching with low on-resistance
Wide single-supply operation capability

Applications

Data acquisition systems requiring low leakage
Battery-powered instrumentation
Medical equipment signal routing

Procurement Notes

Verify the specific suffix DQA against official Texas Instruments documentation to confirm the package type and tape-and-reel specifications. Ensure the ordering information matches the required quantity increments and packaging format defined in the manufacturer's datasheet for this specific part number variant.

Selection Notes

Select this component when low leakage current is critical for maintaining signal accuracy in high-impedance circuits. The wide supply voltage range allows compatibility with various logic levels. Confirm that the thermal performance and package size meet the design constraints for the intended application environment.

Part Context

This part belongs to the TMUX113x family of 5-V low-leakage-current precision analog switches. The family includes variants with different channel counts and configurations, such as the TMUX1133 and TMUX1134, offering flexibility for multiplexer and demultiplexer designs requiring minimal signal distortion.

Replacement Considerations

Check for direct substitutes like the TMUX1136DGSR or TMUX1136PWR, ensuring pinout compatibility and electrical parameter equivalence. Verify package dimensions and thermal characteristics before substitution.
