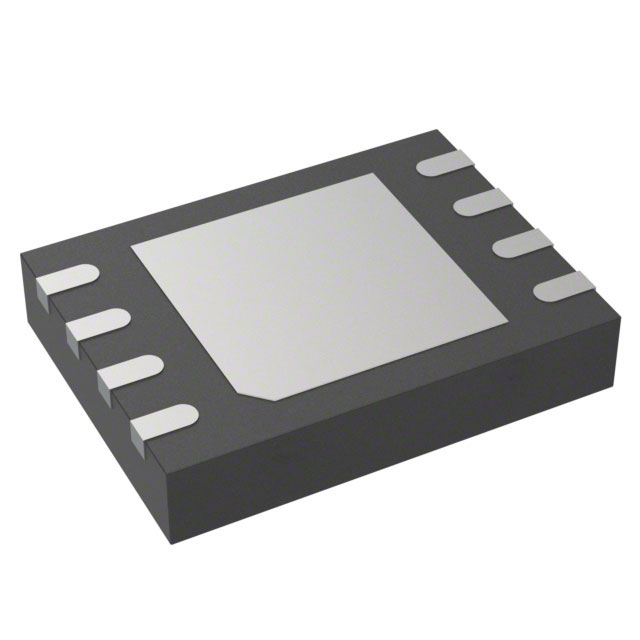

TMUX7219RQXR

$3.53

Description：IC SW SPDT-NO/NCX1 2.8OHM 8WSON
Series：-

SKU:78a8484e7d61 Category: Analog Switches, Multiplexers, Demultiplexers Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC SW SPDT-NO/NCX1 2.8OHM 8WSON
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Circuit：SPDT - NO/NC
Multiplexer/Demultiplexer Circuit：2:01
On-State Resistance (Max)：2.8Ohm
Channel-to-Channel Matching (ΔRon)：100mOhm (Typ)
Voltage - Supply, Single (V+)：4.5V ~ 44V
Voltage - Supply, Dual (V±)：-
Switch Time (Ton, Toff) (Max)：175ns, 180ns
-3db Bandwidth：40MHz
Charge Injection：-16pC
Channel Capacitance (CS(off), CD(off))：34pF, 48pF
Current - Leakage (IS(off)) (Max)：5nA (Max)
Crosstalk：-106dB @ 1MHz
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Package / Case：8-WFDFN Exposed Pad
Supplier Device Package：8-WSON (3x2)
Number of Circuits：1
Grade：-
Qualification：-

Download product information

TMUX7219RQXR

Overview

The TMUX7219RQXR is a single-channel, 2:1 (SPDT) precision analog switch manufactured by Texas Instruments. It operates with a single supply voltage range of 4.5 V to 44 V or dual supplies from ±4.5 V to ±22 V. The device features latch-up immunity and supports bidirectional signal paths ranging from VSS to VDD. Key electrical characteristics include a typical on-resistance of 2.1 Ω, low charge injection of −10 pC, and high current support up to 440 mA in the WSON package. Logic inputs are compatible with 1.8 V signals, and the component functions within an operating temperature range of -40°C to +125°C.

Feature Summary

Latch-up immune design prevents high-current parasitic events caused by overvoltage conditions.
Fail-safe logic circuitry allows control pin voltages to be applied before power supply rails.
Break-before-make switching ensures signal path isolation during transitions.

Applications

Factory automation and industrial controls
Programmable logic controllers (PLC)
Analog input modules
Semiconductor test equipment
Ultrasound scanners

Procurement Notes

Verify the specific ordering suffix RQXR corresponds to the WSON-8 package configuration required for your PCB layout. Confirm that the logic level requirements align with your system's 1.8 V to VDD control interface specifications. Ensure thermal management strategies account for the junction-to-ambient resistance values provided in the datasheet for the selected package type.

Selection Notes

Select this component when high voltage tolerance up to 44 V is required alongside precision switching capabilities. The WSON package offers higher current handling compared to alternative packages. Verify that the break-before-make timing meets the system's signal integrity requirements during channel switching operations.

Part Context

This part belongs to the TMUX72xx family of CMOS switches designed for harsh environments. The RQXR suffix specifically denotes the WSON-8 package variant. This family emphasizes reliability through latch-up immunity and robust logic compatibility, making it suitable for demanding industrial and medical applications requiring precise signal routing.
