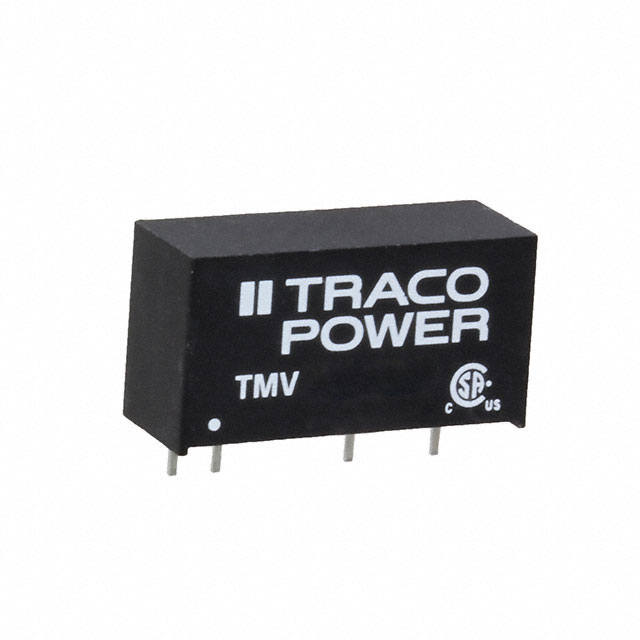

TMV 2415SHI

TMV 2415SHI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 15V 990MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMV 2415SHI

• Description：DC DC CONVERTER 15V 990MW
• Series：TMV-HI (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：66mA
• Power (Watts)：990 mW
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMV 2415SHI
