TP53A-L25CQ33T2-100.000M-TR

Oscillators Overview

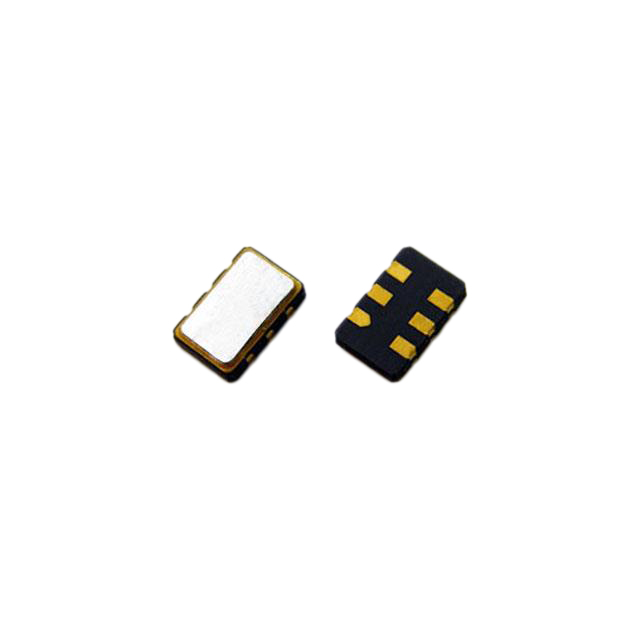

The TP53A-L25CQ33T2-100.000M-TR is a 100 MHz crystal oscillator (XO) manufactured by Transko Electronics, Inc. It utilizes LVDS output signaling and operates at a supply voltage of 3.3V. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, no lead surface-mount package designed for automated assembly processes.

Oscillators Feature Summary

• LVDS output interface for high-speed signal integrity
• Integrated enable/disable control functionality
• RoHS compliant construction

Oscillators Applications

• High-speed digital data transmission systems
• Telecommunications equipment clocking
• Network infrastructure timing sources

Oscillators Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your circuit design before ordering. Confirm that the 6-SMD no-lead package dimensions align with your PCB footprint specifications. Ensure the 3.3V supply voltage matches your system's power rails to prevent operational issues or damage to the component.

Oscillators Selection Notes

Select this model when LVDS signaling is required for noise immunity and high-frequency performance. The enable pin allows for dynamic power management in battery-operated or energy-efficient designs. Consider the 6-SMD form factor for space-constrained applications requiring reliable surface-mount integration.

Oscillators Part Context

This component belongs to the TP53A series of standard crystal oscillators from Transko Electronics. The series offers various frequencies and voltage options, with the T2 suffix typically indicating specific packaging or variant characteristics within the product line. It serves as a precise clock source for digital logic circuits.

Oscillators Replacement Considerations

Direct replacements must match the 100 MHz frequency, LVDS output type, 3.3V supply, and 6-SMD no-lead package. Verify pinout compatibility and electrical parameters such as phase noise and jitter if substituting with other manufacturers' parts.
