TP75A-L25CQ25T1-200.000M

Oscillators Overview

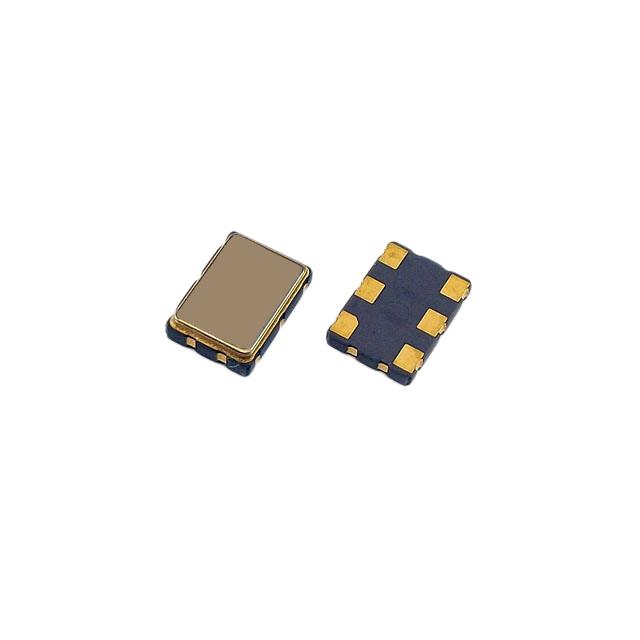

The TP75A-L25CQ25T1-200.000M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a fixed frequency of 200.000 MHz. It utilizes LVDS output signaling for high-speed digital applications and supports a supply voltage range of 2.5V. The device features an enable/disable control function to manage power consumption. It is housed in a compact 6-SMD, no-lead surface-mount package, designed for integration into space-constrained electronic systems requiring precise clock generation.

Oscillators Feature Summary

• LVDS output interface for low-voltage differential signaling compatibility
• Integrated enable/disable control pin for power management
• Standard XO design with fixed frequency stability
• Compact 6-SMD no-lead surface-mount form factor

Oscillators Applications

• High-speed data communication interfaces
• Digital signal processing clock sources
• Network equipment timing circuits
• Consumer electronics requiring precise synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency tolerance and load capacitance specifications. Confirm that the LVDS output swing aligns with the receiving component's input requirements. Ensure the 2.5V supply voltage is stable within the operational range defined in the official datasheet. Check for any environmental qualification ratings if the application involves extreme temperatures or vibration.

Oscillators Selection Notes

Select this component when a 200 MHz clock source with LVDS outputs is required in a small footprint. Consider the enable/disable feature if system-level power efficiency is a priority. Compare against other Transko TP75A variants for different frequencies or voltage levels. Ensure the PCB layout supports the 6-SMD no-lead package dimensions and thermal requirements specified in the mechanical drawings.

Oscillators Part Context

This part belongs to the TP75A series of miniature ceramic SMD oscillators from Transko Electronics. The series offers various frequencies and output types, including HCMOS and LVDS. The TP75A-L25CQ25T1 variant specifically denotes the 2.5V supply, LVDS output, and 200 MHz frequency configuration within this product line.

Oscillators Replacement Considerations

Transko suggests TMM oscillators as potential replacements for certain legacy parts, though direct substitution requires verification of electrical parameters. Cross-reference with other manufacturers' 200 MHz LVDS oscillators in 6-SMD packages, ensuring pinout and voltage compatibility.
