TP75A-L25CQ33T1-148.500M-TR

Oscillators Overview

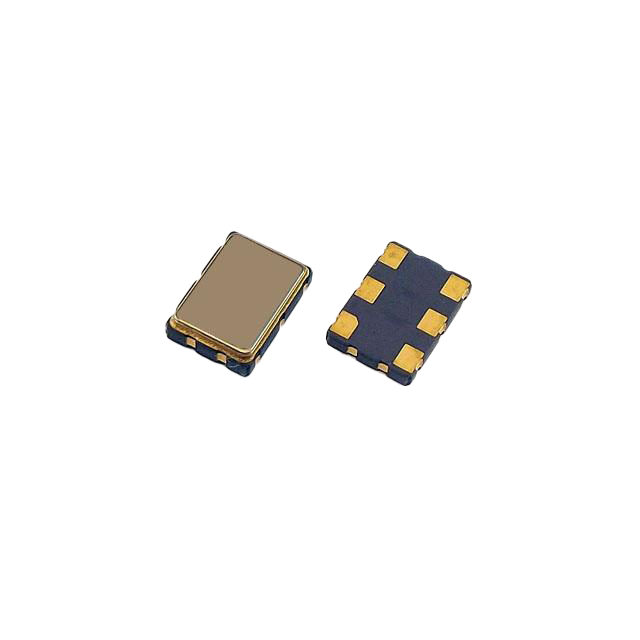

The TP75A-L25CQ33T1-148.500M-TR is a crystal oscillator (XO) manufactured by Transko Electronics, Inc. It operates at a frequency of 148.5 MHz and utilizes LVDS output signaling. The device functions on a 3.3V supply voltage and includes enable/disable control capabilities. It is housed in a 6-SMD surface-mount package without lead.

Oscillators Feature Summary

• Supports LVDS output signaling for high-speed data transmission
• Features integrated enable and disable control functionality
• Designed for standard surface-mount assembly processes

Oscillators Applications

• High-speed digital signal processing systems
• Telecommunications equipment requiring precise clocking
• Data acquisition systems with strict timing requirements

Oscillators Procurement Notes

Verify the specific part number suffix to ensure the correct frequency variant is ordered. Confirm that the 6-SMD package type matches the target PCB footprint. Ensure the 3.3V supply voltage aligns with the system design specifications before procurement.

Oscillators Selection Notes

Select this component when an LVDS interface is required for low-voltage differential signaling applications. Consider the 148.5 MHz frequency requirement specifically for video or high-bandwidth data interfaces. Evaluate the need for external enable control logic within the system architecture.

Oscillators Part Context

This model belongs to the TP75A series of crystal oscillators from Transko Electronics. The series offers various frequency options within a compact SMD form factor. The LVDS output variant provides improved noise immunity compared to single-ended outputs.

Oscillators Replacement Considerations

Direct replacements must match the 148.5 MHz frequency, LVDS output type, 3.3V supply, and 6-SMD package dimensions. Verify pinout compatibility and electrical characteristics before substituting with other manufacturers' components.
