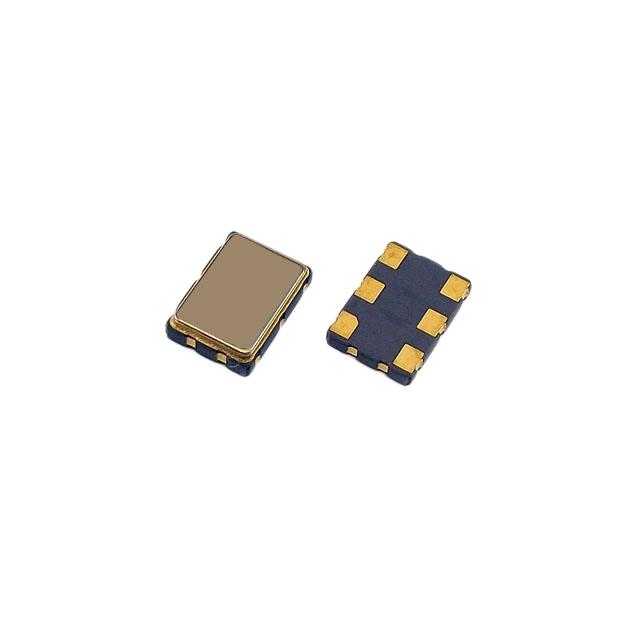

TP75A-L25CQ33T1-200.000M

$7.65

Description：XTAL OSC XO 200.0000MHZ LVDS SMD
Series：TP75A
Mfr：Transko Electronics, Inc.
Package：Tape & Reel (TR)

SKU:6a1f95405398 Category: Oscillators Brand: Transko Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TP75A-L25CQ33T1-200.000M is listed in the Oscillators range at ChipApex. The manufacturer field lists Transko Electronics, Inc.. Its product description is XTAL OSC XO 200.0000MHZ LVDS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for TP75A-L25CQ33T1-200.000M

Description：XTAL OSC XO 200.0000MHZ LVDS SMD
Series：TP75A
Mfr：Transko Electronics, Inc.
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：200 MHz
Function：Enable/Disable
Output：LVDS
Voltage - Supply：3.3V
Frequency Stability：±25ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：45mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.075" (1.90mm)
Supplier Device Package：-

Oscillators datasheet and documents for TP75A-L25CQ33T1-200.000M

TP75A-L25CQ33T1-200.000M

Oscillators Overview

The TP75A-L25CQ33T1-200.000M is a 200 MHz crystal oscillator (XO) manufactured by Transko Electronics, Inc. It utilizes LVDS output signaling and operates on a 3.3V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, no-lead surface-mount package, designed for integration into miniature electronic circuits requiring precise timing signals.

Oscillators Feature Summary

LVDS output interface for high-speed signal integrity
Integrated enable and disable control functionality
Compact 6-SMD no-lead surface-mount packaging

Oscillators Applications

General purpose digital circuit timing
Data communication interfaces
Embedded system clock generation

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's current datasheet to ensure compatibility with your design requirements. Confirm that the LVDS output type matches your receiver inputs. Check the enable/disable pin configuration if active power control is required for your application. Ensure the 6-SMD footprint aligns with your PCB layout specifications before finalizing procurement.

Oscillators Selection Notes

Select this component when a standard frequency XO with LVDS outputs is required at 200 MHz. Consider the 3.3V operating voltage and the availability of enable/disable controls for power optimization. Evaluate the 6-SMD package size constraints against your board space limitations. Verify thermal and electrical performance requirements against the official specification sheet.

Oscillators Part Context

This part belongs to the TP75A series of miniature ceramic SMD oscillators from Transko Electronics. The series offers various frequencies and output types. The TP75A-L25CQ33T1 variant specifically denotes the LVDS output, 3.3V supply, and 6-pin SMD configuration within this product line.
