TPC817B C9G

Transistor, Photovoltaic Output Optoisolators Overview

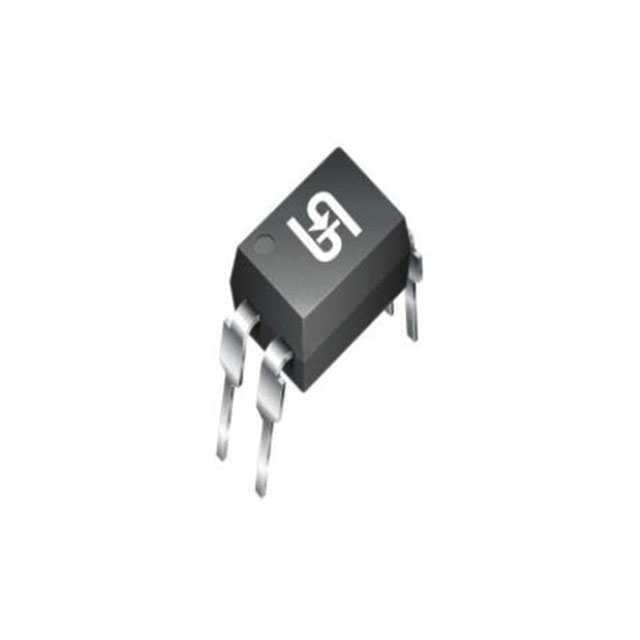

The TPC817B C9G is a single-channel transistor output optocoupler manufactured by Taiwan Semiconductor. It features a phototransistor output and accepts DC input signals. The device provides an isolation voltage of 5000 Vrms with a creepage distance exceeding 7.62 mm. Key electrical parameters include a maximum collector-emitter voltage of 80 V, a maximum collector current of 50 mA, and a forward current of 50 mA. The typical forward voltage is 1.2 V, while the collector-emitter saturation voltage is limited to 100 mV. The current transfer ratio ranges from 130% to 260%. Dynamic performance includes a rise time of 4 µs and a fall time of 3 µs. Power dissipation is rated at 200 mW, and the unit operates within a temperature range of -40°C to +100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Provides high-voltage electrical isolation between input and output circuits using optical transmission.
• Delivers fast switching speeds suitable for signal transmission applications with defined rise and fall times.
• Ensures safety compliance through recognized certification and halogen-free construction.

Transistor, Photovoltaic Output Optoisolators Applications

• Programmable controllers
• System appliances and measuring instruments
• Telecommunication equipment
• Home appliances such as fan heaters
• Signal transmission between circuits of different potentials

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component authenticity upon receipt, as the TPC817B C9G is listed as discontinued in official distributor records. Confirm that the specific C9G suffix matches the required packaging configuration before integration into production lines. Ensure compatibility with existing DIP-4 through-hole mounting processes. Review RoHS directive compliance documentation to verify adherence to current environmental standards for electronic components.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when a standard transistor output optocoupler with a minimum current transfer ratio of 130% is required. The 80 V collector-emitter voltage rating supports low-voltage logic interfacing. Verify that the 50 mA collector current capacity meets load requirements. Consider the 4 µs rise time for timing-sensitive digital signal isolation tasks where moderate speed is sufficient.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the TPC817 series of phototransistor photocouplers produced by Taiwan Semiconductor. The series utilizes a 4-pin DIP package design common in legacy and industrial electronics. The B grade designation indicates a specific binning of the current transfer ratio characteristics compared to other variants in the family.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-reference with generic PC817 equivalents only if electrical parameters align precisely with the original specifications.

Transistor, Photovoltaic Output Optoisolators FAQ

What is the creepage distance of the TPC817B C9G?

The creepage distance exceeds 7.62 mm, supporting the 5000 Vrms isolation rating.

Does the TPC817B C9G comply with halogen-free standards?

Yes, the device is compliant with IEC 61249-2-21 regarding halogen-free content.
